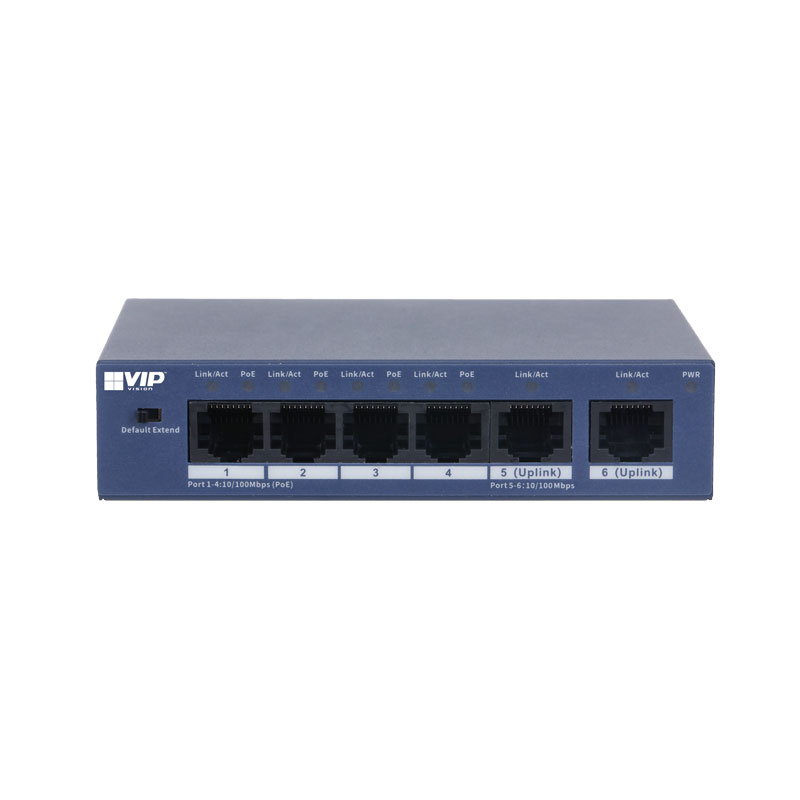

VIP Vision Unmanaged 4-Port PoE Switch with 2-Port Uplink (100M)

Overview

The VSPOE-SWA4U is a desktop fast (100M) PoE switch with 4 device ports and 2 uplink ports. This switch is ideal for providing data and power to devices on the edge of a network, such as CCTV cameras, wireless access points, IP telephones, network access control systems and more. • 4 x Fast PoE+ 10/100Mbps RJ45 Device Ports • 2 x Fast 10/100Mbps RJ45 Uplink Ports • PoE+ power load up to 30W per port; 60W switch total power load • Extend mode switch for PoE power via Ethernet up to 250m (10Mbps transfer rate only) • Unmanaged switch, plug and play for easy deployment • Professional appearance full metal enclosure • 53VDC power supply included • Lightning overvoltage protection up to 6kV

• Device Ports: 4 x 10/100 PoE RJ45
• DHCP: N/A
• Dimensions: 115.5 x 84.3 x 27mm
• Exchange Mode: -
• Extend Mode: Up to 250m range at 10Mbps
• Flow Control: N/A
• Input Power: 53VDC
• Lightning Protection: Common Mode: 6kV / Differential Mode: 1kV
• LLDP: N/A
• MAC Address Capacity: N/A
• Management: Unmanaged
• Mounting Options: Rackmount Tabs (1RU) / Desktop Mount
