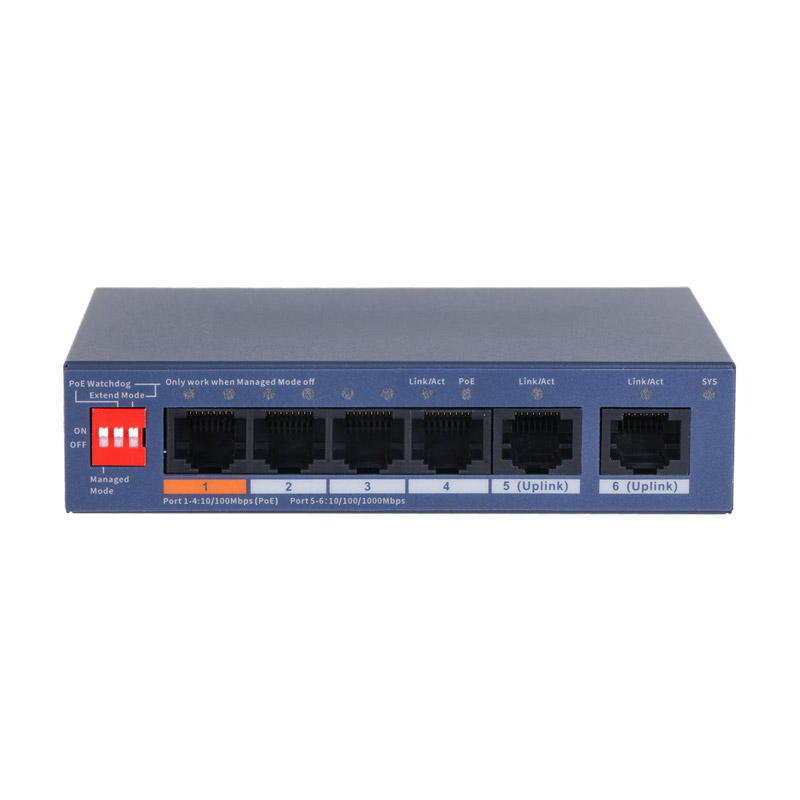

VIP Vision Unmanaged 4-Port (100M) Hi-PoE Switch with 2-Port Uplink (1000M)

Overview

The VSPOE-SWA4C is a wall and desktop mount fast Hi-PoE switch in 4 ports. This switch is ideal for providing data and power to devices on the edge of a network, such as CCTV cameras, wireless access points, IP telephones, network access control systems and more. • PoE, PoE+ and Hi-PoE support for up to 60W per port • Total PoE power load up to 60W • Fast PoE+ device ports with 100Mbps per port • Extend mode takes Ethernet cable runs up to 250m • Wall and desk mount installation • Professional appearance full metal enclosure • Lightning overvoltage protection up to 6kV

• Device Ports: 4 x 10/100 Base-T (PoE power supply ports)
• DHCP: N/A
• Dimensions: 115 x 84 x 27mm
• Exchange Mode: -
• Extend Mode: Up to 250m range at 10Mbps
• Flow Control: N/A
• Input Power: 53VDC
• Lightning Protection: Common Mode: 6kV / Differential Mode: 0kV
• LLDP: N/A
• MAC Address Capacity: 2K
• Management: Unmanaged
• Mounting Options: Rackmount Tabs (1RU) / Desktop Mount
