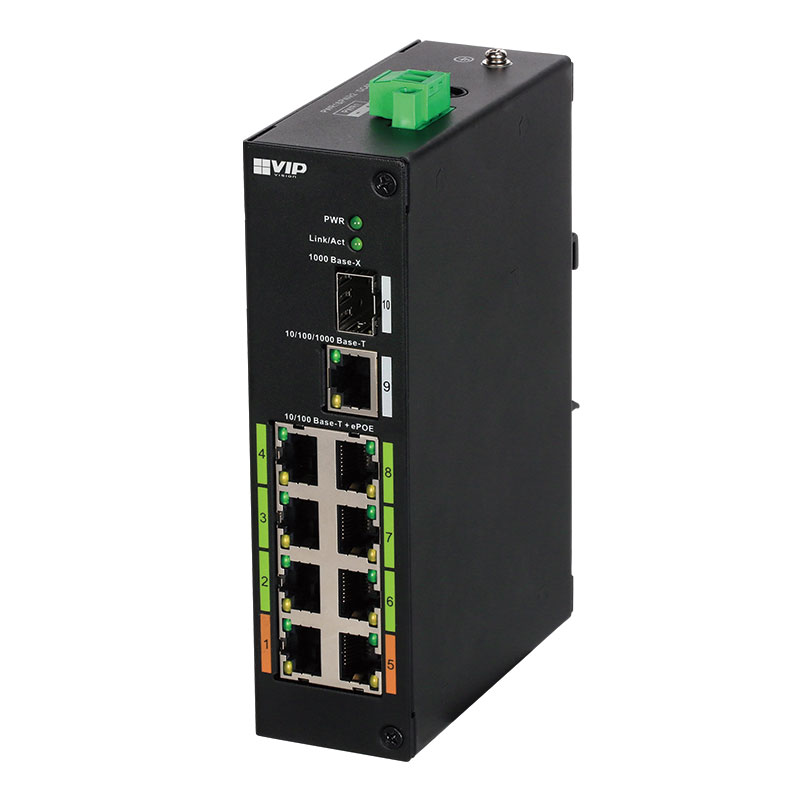

VIP Vision 8-port Unmanaged Fast Extended PoE DIN Rail Ethernet Switch

Overview

The VSPOE-SW8E achieves incredible network & power transmission distances over regular Ethernet cable. Extend CCTV installations up to 800m when paired with compatible extended PoE (ePoE) IP surveillance cameras. The VSPOE-SW8E also features Hi-PoE device support, multiple uplink port types and option for DIN rail mounting. • 8 x PoE+ device ports with 100Mbps per port (ePoE capable) • 1 x Hi-PoE device port with 100Mbps per port (ePoE capable) • 1 x 1000Mbps Gigabit RJ45 & SFP fibre uplink ports • Total PoE power load up to 120W • Extend up to 300m@100Mbps and 800m@10Mbps • Unmanaged switch for plug and play applications • DIN rail mountable for neat rackmount installations • Professional appearance full metal enclosure * Refer to datasheet for ePoE transmission performance tables

• Device Ports: 8 x 10/100 Base-T (PoE power supply ports)
• DHCP: N/A
• Dimensions: 150 x 100 x 42mm
• Exchange Mode: Store & forward
• Extend Mode: N/A
• Flow Control: Enabled
• Input Power: 48 ~ 57VDC
• Lightning Protection: Common Mode: 4kV / Differential Mode: 2kV
• LLDP: N/A
• MAC Address Capacity: 8K
• Management: Unmanaged
• Mounting Options: DIN rail
