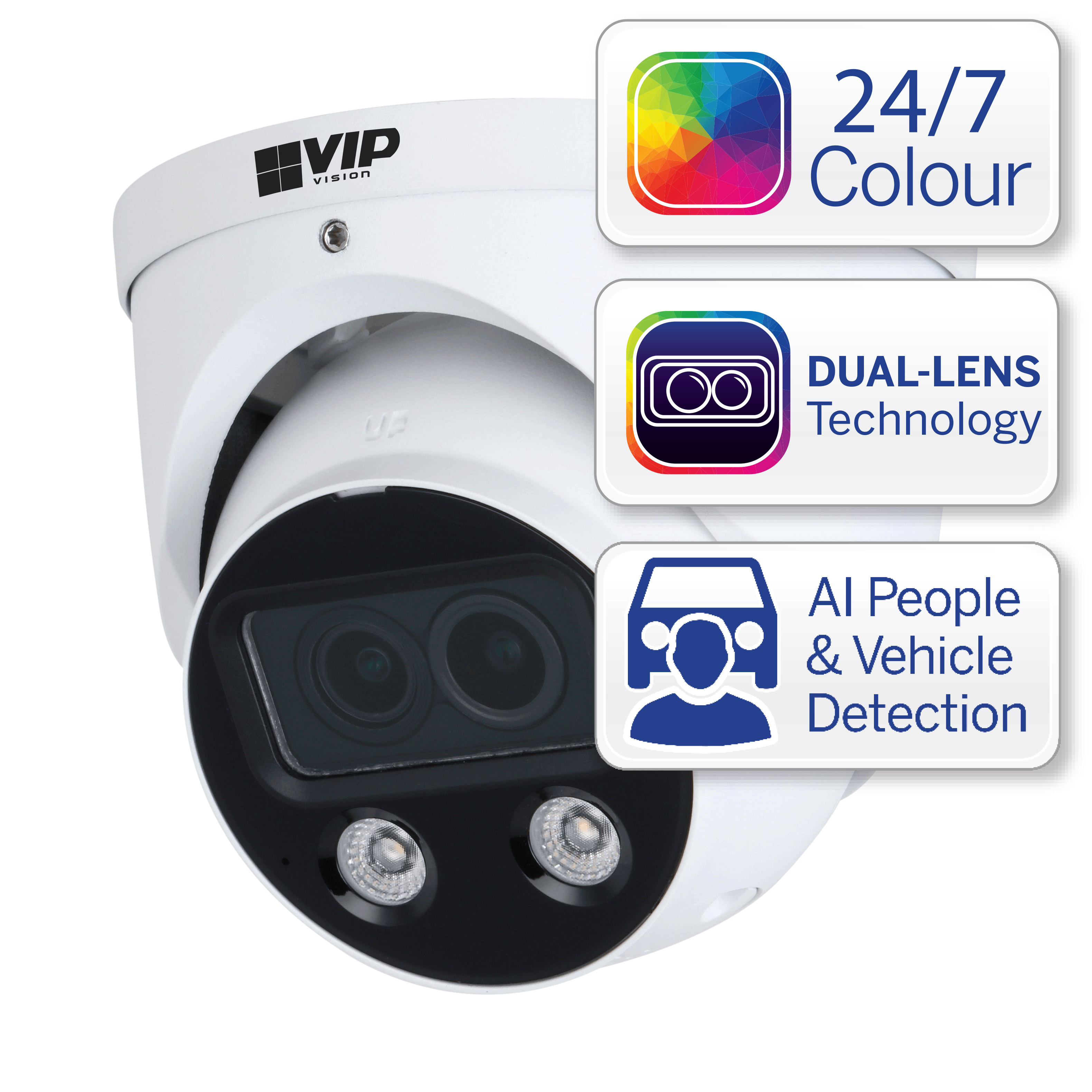

Ultimate AI Series 4.0MP Fixed Dual Lens

Overview

The Ultimate AI Series detects and captures faces from footage using machine-learned algorithms, preparing face data for use with an AI NVR face database. This enables up to 16 channels of face recognition. The series also features intelligent perimeter protection and people counting to provide meaningful video event notifications in real-time. Camera features: • Stream up to 4.0MP (2688 x 1520) at 25fps • 2.8 mm wide angle lens at 97° FOV • 24/7 Colour video • Dual AI sensors that produce vibrant low-light colours • H.265 encoding for efficient storage & streaming • 50m infrared/light range; true day/night (auto ICR) • Back/highlight compensation & true WDR (140dB) • MicroSD slot for recording at the edge up to 256GB • Internal face detection & capture to extend AI recognition in NVR database • Perimeter Protection to identify people & vehicles • Combine Perimeter Protection with Tripwire/Intrusion to prevent false alarms with any VIP Vision NVR • Intelligent AI-enhanced people counting for retail capacity management and flow control • Extend PoE up to 800m (requires ePoE NVR/switch) • IP67 weather rated

• Alarm Interface: 1 channel in: 5 mA 3-5 VDC / 1 channel out: 300 mA 12 VDC
• Audio Interface: 1 input (RCA Port)/ 1 output (RCA Port) / Audio Compression - G.711a; G.711Mu; G726; G.723
• Bit Rate: H.264: 32 kbps–8192 kbps H.265: 19 kbps–8192 kbps
• Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)
• Camera Type: Turret
• Day/Night: Auto (ICR) / Color / B&W
• Detect (25px/m): 58.2 m
• Dimensions: Φ122 mm × 110.9 mm
• Edge Storage: MicroSD Card (up to 256GB) / NAS / FTP /SFTP
• Effective Pixels: 2688 (H) × 1520 (V)
• ePoE: Yes
• Ethernet: RJ-45 (10/100Base-T)
