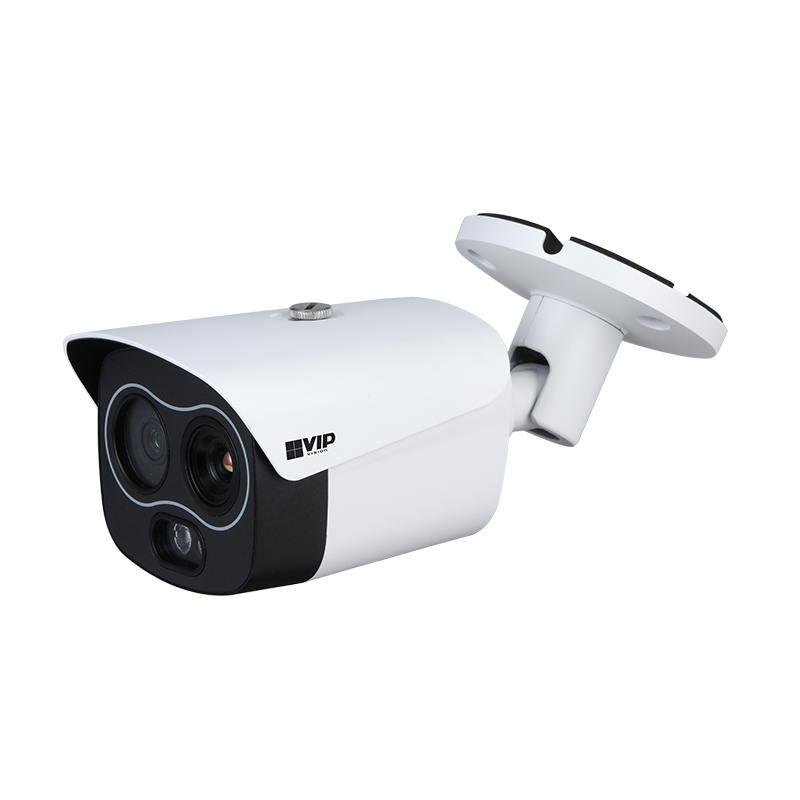

Hybrid Thermal Series 4.0MP Fixed Bullet

Overview

By combining traditional image & thermal sensors, VIP Vision hybrid thermal cameras redefine your expectations of surveillance. Enhance images with Image Fusion thermal overlay, achieve excellent motion detection accuracy, setup thermal perimeters using IVS, and detect fires before they spread, all in a compact weather rated chassis. Camera Features: • Combination thermal and visible light surveillance • 4.0MP visible light sensor with choice of fixed lenses • One IP address per channel for thermal & visible images (2 channels used) • Set tripwire/intrusion rules; heat and fire detection • VOx thermal sensor with 256 x 192px resolution • Detects 8~14μm wavelength infrared spectral range • White light & siren for thermal trigger event alerts • Adjustable modes & alarm output for fire detection • 30m IR illuminator, Alarm I/O, audio I/O, IP67 rated

• Alarm Interface: 1 Input / 1 Output
• Aperture: Thermal: F1.0 Visible: F1.6
• Audio Interface: 1 Input, 1 Output (RCA) / Compression: G.711a, G.711Mu, AAC
• Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)
• Camera Type: Bullet
• Category: Network Surveillance
• Close Focus Distance: Thermal: 0.5m Visible: 1.0m
• Colour Palettes: 18 thermal colour palettes (eg: WhiteHot, BlackHot, Rainbow etc.)
• Day/Night: Auto (ICR) / Color / B&W
• Dimensions & Weight: 206mm x 91mm x 91mm. 0.90kg
• Edge Storage: MicroSD Card (up to 128GB) / NAS / Local PC
• Effective pixel (Thermal): 256 (H) x 192 (V), 12μm Pixel Pitch
