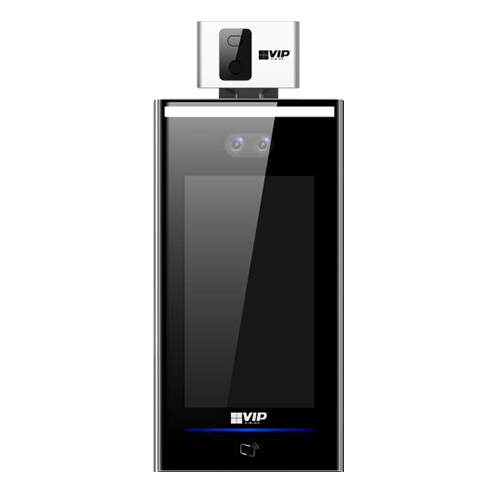

Temperature Monitoring Access Control Station

Overview

Create fast, contactless temperature screening checkpoints with the VSIPT-MACT. The system can both accurately detect faces and read body temperatures, setting off alerts & alarms when high temperatures are detected, and features an easy-to-use touchscreen interface for admin use. The VSIPT-MACT controls access in multiple ways, including conventional methods such as keycard and passcode unlock, as well as unlock via face match and temperature measurement. It can even be configured to check for face masks. Product features: • Standalone face recognition & BTM access module with WiFi • Create fast, contactless temperature screening checkpoints • Controls access from unauthorised persons & temp threshold • BTM & access event alerts via email & device push notifications • 7” LCD display and touchscreen with 600 x 1024 resolution • Monitor face temperatures with ±0.5°C accuracy • Face detection from a distance of 0.3m to 2.0m • Voice responses to direct users and allow/deny entry • 1/2.8” 2.0MP CMOS image sensor with WDR • Admin unlock via face, card, password or a combination • 2/2 alarm input/output, RS485, RS232, Wiegand • Contactless scanning in a compact, slim body • Wall mountable (desk & floor mounts sold separately)

• Additional Input / Output: 1 x Exit Button / 1 x Door Status Detection / 1 x Lock Control
• Alarm Features: Anti-Passback / Tamper Switch / Duress / Door Sensor Timeout / Intrusion / Illegal Card Exceeding Threshold
• Alarm Input / Output: 2 channels input / 2 channels output
• Auxiliary Inputs: 1 x RS485 / 1 x RS232 / 1 x Wiegand (Input or Output)
• Camera: 1/2.8” 2.0MP CMOS WDR Dual Camera
• Card Capacity: 100,000
• Card Reading Type: IC Card
• Display: 7” Capacitive LCD Monitor
• Ethernet: 1 x 1000M Ethernet Port / 1 x 10M/100M Ethernet Port
• Face Image Capacity: 100,000
• First-Card Unlock: Yes
• Holiday Period: 128
