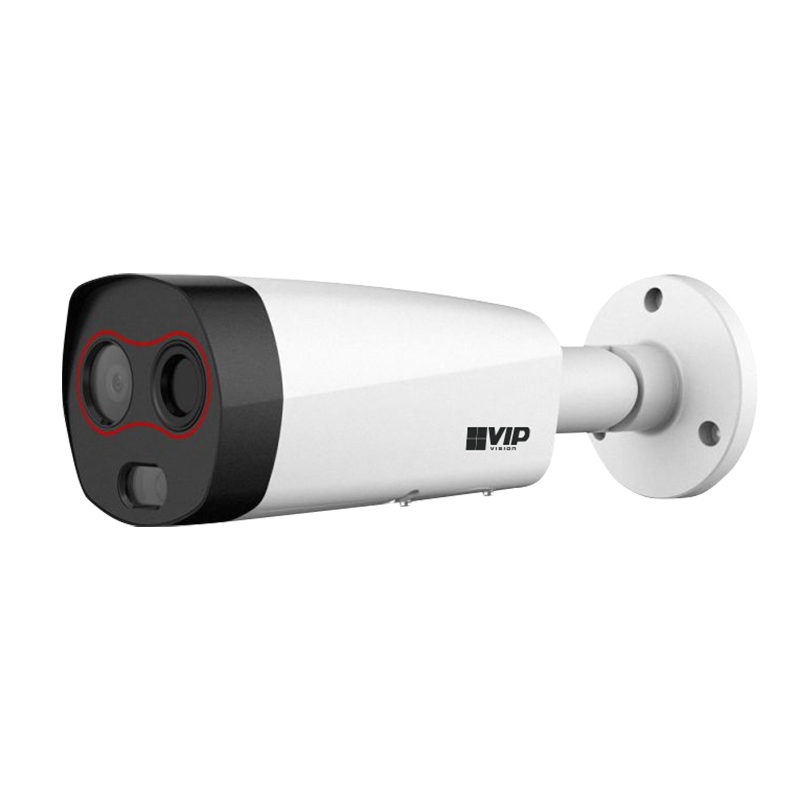

Thermal Body Temperature Measurement System

Overview

Doubling as a surveillance system and thermal scanner, the VSIP-2BTS acts as a fast, reliable & precise screening method in high traffic areas. The thermal lens is fine-tuned for body temperature measurement, serving as an automatic alert system and activating a built-in alarm when high temperatures are detected. Thermal features: • Set body temperature alerts ranging from 30°C to 45°C • High temperature accuracy with ±0.3°C margin of error • Built-in light & buzzer, with additional alarm outputs • Temperature test covers up to 15 people simultaneously Camera features: • Stream up to Full HD/1080p (1920 x 1080) at 25fps • 2.0MP standard sensor & 6mm fixed lens (52.8°) • One IP address/channel for thermal & visible images • 50m infrared range, true WDR (120dB) & 2D/3D DNR • Uncooled VOx thermal sensor (256x192 pixels) • 7.5mm fixed lens for thermal camera (32.4°) • Detects 8~14μm wavelength infrared spectral range • Audio & alarm input/output, IP67 rated body & PoE System Includes: 1 x 2.0MP Thermal Body Temperature Camera 1 x BTM Calibration Target 2 x Mounting Tripods 2 x Tripod Connectors for Camera & Calibration Target

• Alarm Interface: 2 Input / 1 Output
• Audio Interface: 1 Input / 1 Output
• Bit Rate: H.264: 640 ~ 8192Kbps
• Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)
• Camera Type: Thermal Bullet
• Colour Palettes: 18 thermal colour palettes (eg: WhiteHot, BlackHot, Rainbow etc.)
• Day/Night: Auto (ICR) / Color / B&W
• Dimensions: 365mm x 175mm x 176mm (with bracket)
• Edge Storage: MicroSD Card (up to 256GB)
• Effective Pixels: 1920 (H) x 1080 (V)
• Effective Pixels (Thermal): 256 (H) x 192 (V)
• ePoE: No
