VIP Vision

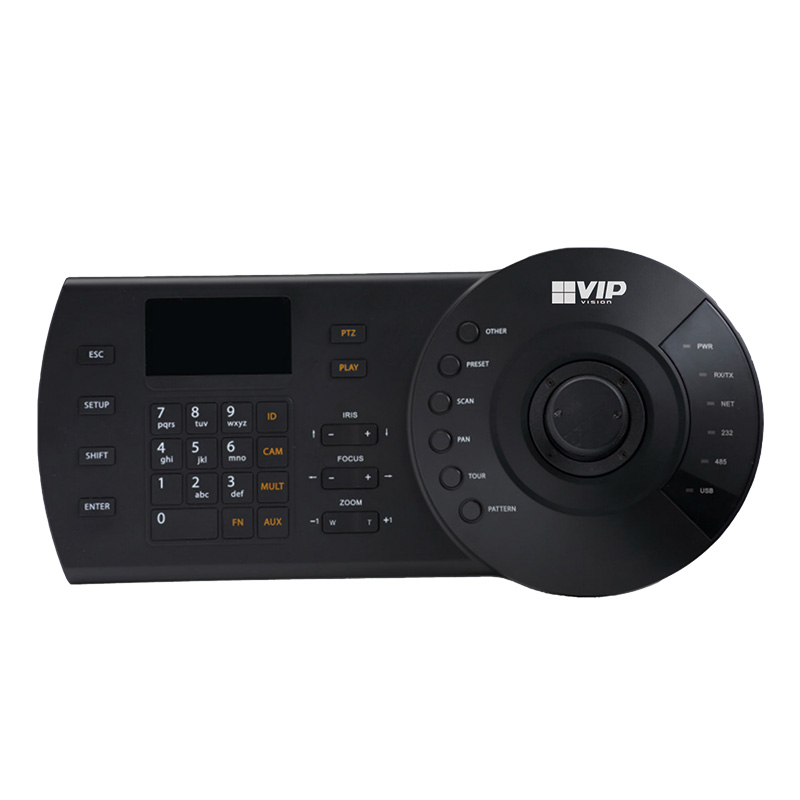

VIP Vision IP PTZ Control Keyboard
Part no. VSIPPTZKB3 · Warranty 48 months
$388.45inc GST
In stock
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.
Overview
The IP PTZ control keyboard is compatible with all VIP Vision, Securview and Watchguard PTZ cameras over a network. Features: • Control a variety of PTZ cameras and DVRs with this PTZ keyboard • Features RS485, RS422 (reserved), USB, RS232 & RJ45 connections • Three dimensional joystick control of PTZ functions • Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern Auxiliary Functions • 75.2mm×33.85mm on-keyboard LCD with user menu and operation/procedure tips • Interfaces to PTZ domes and DVR/NVR via: • Network mode: Control via RJ45 using IP Address/Port/Protocol • Direct mode: Control via 1 RS232/2 RS485 using protocols below: • DVR: DH2 / Camera protocols: DH-SD1/PELCO-D/PELCO-P • Connect to SmartPSS or DSS platform via USB
- Atmosphere Pressure: 86kpa~106kpa
- Dimension (W×D×H): 330mm×139mm×53mm (not including joystick) 330mm×139mm×103mm (including joystick)
- Direct Interface: 1 RS232/2 RS485
- Joystick: 3-axis, vector-solving, with twisting, return to-center head
- LCD Display: 75.2mm x 33.85mm
- Network Interface: RJ45
- Power Consumption: 5W
- Power Supply: input 100V~240V 50Hz / 60Hz,output DC12V/1000mA
- Weight: 1.3kg (Including package)
- Working Humidity: 10%~90%
- Working Temperature: -10℃~+55℃
