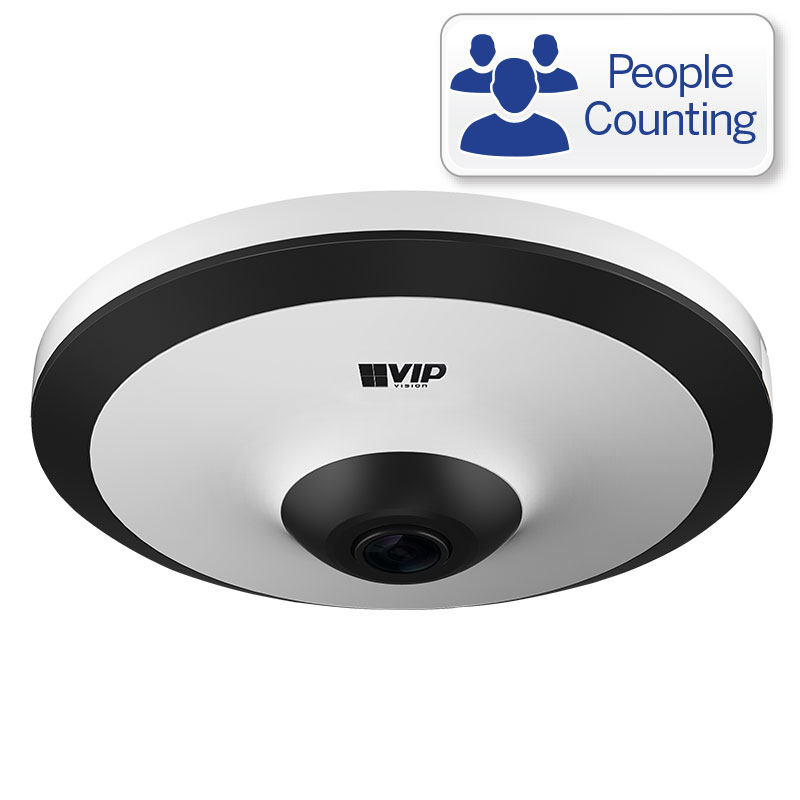

Specialist AI Series 5.0MP People Counting 360° Fisheye Dome

Overview

The VSIPFE-5IR-I performs the duties of multiple cameras, with the powerful benefit of AI-powered people counting and heat mapping functions. Receive real-time alerts when a certain number of people enter an area with AI people & area counting or set up heat map to observe the amount of time people spend in areas. Camera features: • Stream up to 5.0MP (2592 x 1944) at 25fps • Circular fisheye lens with 360° viewing angle • Dewarp modes* for ceiling, floor & wall mounting • Virtual PTZ, panorama, & camera split dewarp modes • Up to 10m infrared range; true day/night (auto ICR) • Set up AI-enhanced people tracking for real-time alerts, statistics and business analytics • Heat map, tripwire, intrusion & regions of interest • MicroSD card slot for edge recording up to 256GB • Built in mic and audio/alarm inputs and outputs * Check the Supported NVR specification to see if Fisheye Dewarping is supported by that NVR model

• Alarm Interface: 1 Input (5mA 3VDC ~ 5VDC), 1 Output (300mA 12VDC)
• Audio Interface: 1 input (RCA Port), 1 Built-in Mic / 1 output (RCA Port) / Audio Compression - PCM; G.711a; G.711Mu; G726; AAC
• Bit Rate: H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps
• Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)
• Camera Type: Fisheye
• Day/Night: Auto (ICR) / Color / B&W
• Detect (25px/m): 28m
• Dewarping Modes: Original (No dewarp) / Panoramic / Double Panoramic / Virtual PTZ / Original + 3 split, + 4 split, + 8 split
• Dimensions: Ø126.2mm x 44.6mm
• Edge Storage: MicroSD Card (up to 256GB) / NAS / FTP / SFTP
• Effective Pixels: 2592 (H) x 1944 (V)
• ePoE: No
