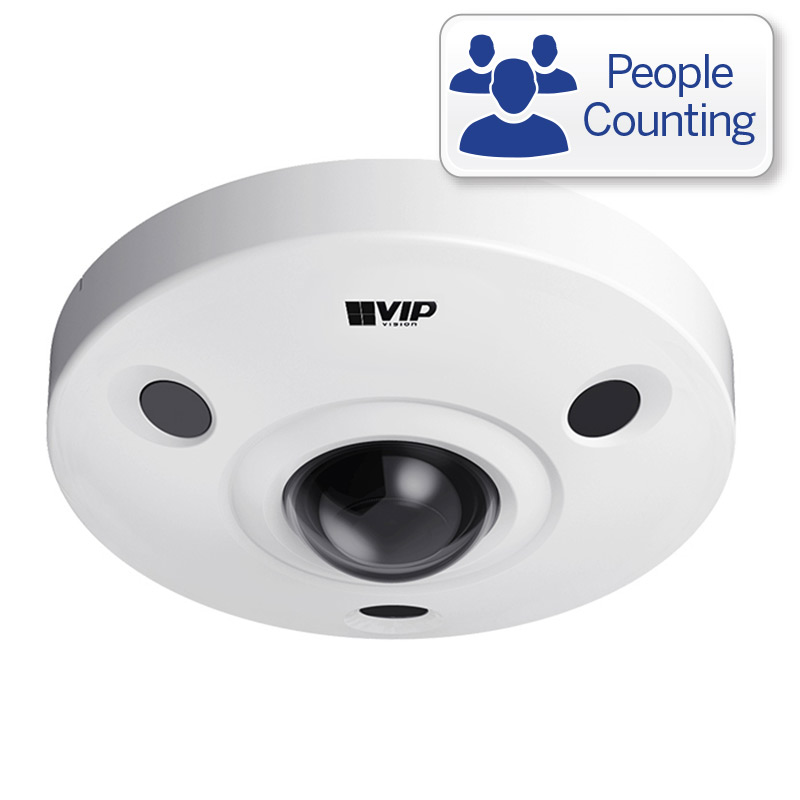

Specialist AI Series 12.0MP People Counting 360° Fisheye Dome

Overview

The VSIPFE-12IR-I performs the duties of multiple cameras, with the powerful benefit of AI-powered people counting, queue management and heat mapping. Receive alerts when a certain number of people enter an area with queue management or set up heat map to observe the amount of time spent in areas. Camera features: • Stream up to 12.0MP (4000 x 3000) at 25fps • Circular fisheye lens with 360° viewing angle • Dewarp modes (NVR64ULT8S, NVR32ULTNPV2, NVR32PRO16P3, NVR24PRO6, NVR16PRO7, NVR8PRO7) for ceiling, floor & wall mounting • Virtual PTZ, panorama, & camera split dewarp modes • Up to 10m infrared range; true day/night (auto ICR) • Set up AI-enhanced people tracking for real-time alerts, statistics and business analytics • Heat map, queue management & regions of interest • MicroSD card slot for edge recording up to 128GB • IP67 weather & IK10 vandal resistant housing * Check the Supported NVR specification to see if Fisheye Dewarping is supported by that NVR model

• Alarm Interface: 2 Channel Input / 2 Channels Output
• Audio Interface: 1 Channel Input (RCA), 1 Built-in Mic / 1 Channel Output / Audio Compression: G.711A, G.711Mu, G726, AAC
• Bit Rate: H264: 88Kbps-16384Kbps ;H265: 52Kbps-16384Kbps
• Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)
• Camera Type: Fisheye
• Day/Night: N/A
• Detect (25px/m): 40m
• Dewarping Modes: Original (Dewarp Supported) / Panoramic / Double Panoramic / Virtual PTZ / Original + 3 split, + 4 split, + 8 split
• Dimensions: Ø150mm x 60mm
• Edge Storage: MicroSD Card (up to 256GB) / FTP
• Effective Pixels: 4000 (H) x 3000 (V)
• ePoE: No
