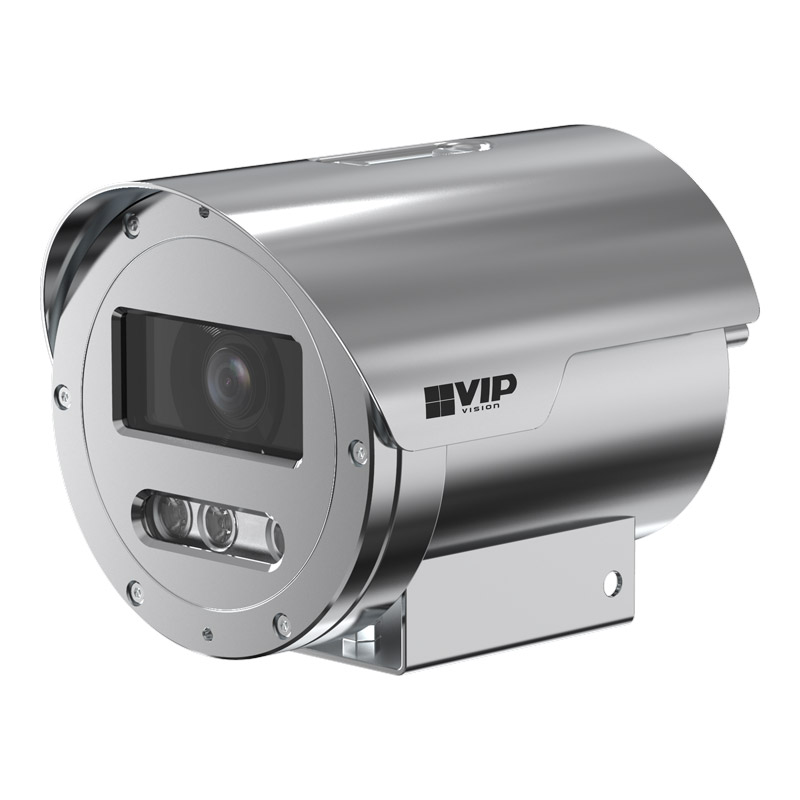

VIP Vision 8.0MP Explosion Rated Bullet
Part no. VSIPEX-8B · Warranty 48 months
$2,944.25inc GST
Available to order
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.
Overview
The Explosion Rated Series offers ATEX and IECEx rated varifocal cameras for CCTV monitoring in hazardous environments where ignition sources must be strictly controlled. Built for energy & manufacturing industries, models in this range deliver superb video surveillance with AI functions, in a heavy duty, IP68 stainless steel chassis. Camera features: • Stream up to 8.0MP@25fps (3840 x 2160), AI H.265 • ATEX/IECEx: Zone 1/2 Gas (IIC); Zone 21/22 dust (IIIC) • Up to 50m infrared range; true day/night (auto ICR) • AI people counting via tripwire with data export • AI human/vehicle detection up to 99% accuracy • 2.7~13.5mm motorised lens (H: 109°~30°), fixed iris • True WDR (120dB) & electronic image stabilisation • Audio I/O (RCA), 1/1 alarm I/O and 1 x RS485 port • MicroSD (up to 512GB); powered via PoE/12VDC • IP68 rated stainless steel chassis (304, 316L optional) Additional mount adapter/wall mount bracket (VSIPEX-BU, VSIPEX-BW) sold separately.
- Alarm Interface: 1 input (wet contact, 5mA 3~5VDC), 1 output (dry contact1000mA 30VDC, 500mA 50VAC)
- Audio Interface: 1 input / 1 output (RCA), Compression: G.711a; G.711Mu; G726; AAC
- Bit Rate: H.264 / H.265: 32 ~ 16,384Kbps
- Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)
- Camera Type: Bullet
- Certifications: CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; ATEX: II 2 G Ex db IIC T6 Gb, II 2 D Ex tb IIIC T80°C Db, IECEx: Ex db IIC T6 Gb, Ex tb IIIC T80°C Db
- Day/Night: Auto (ICR) / Color / B&W
- Detect (25px/m): 88m (wide) / 290m (tele)
- Dimensions: 215mm x 149mm x 151mm
- Edge Storage: MicroSD Card (up to 512GB), NAS, Local PC, FTP, SFTP
- Effective Pixels: 3840 (H) x 2160 (V)
- ePoE: No
