Securview

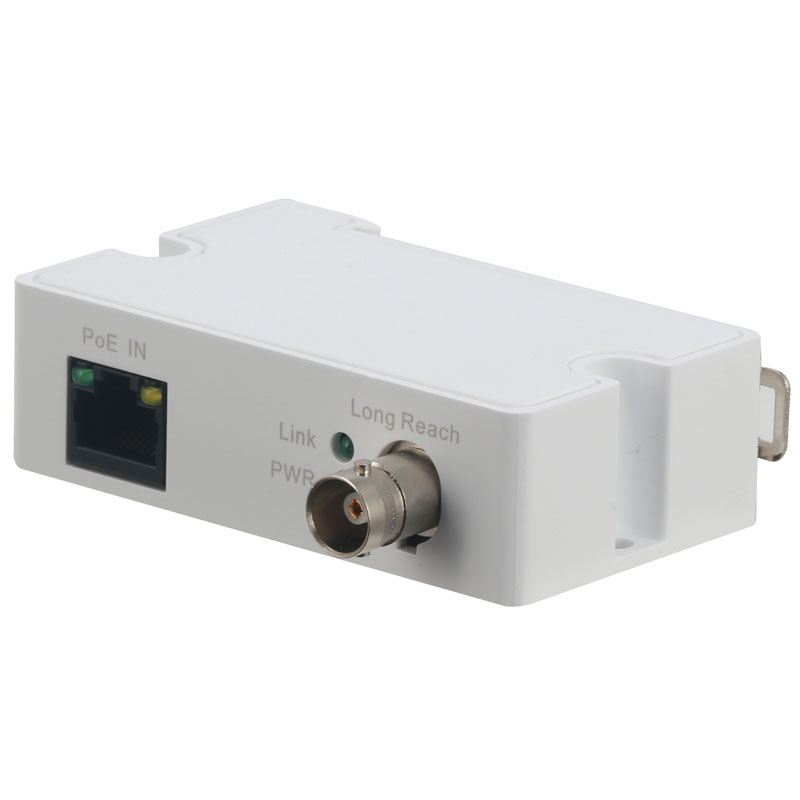

Ethernet over Coax Receiver
Part no. VSEOC-ARX · Warranty 48 months
$61.90inc GST
In stock
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.
Overview
Convert network connections running over coaxial cable back to RJ45 with the VSEOC-ARX. With these converters, you can repurpose existing coaxial cabling to be used with IP security systems, including PoE. Product features: • 1 x RJ45 10/100Mbps port, 1 x BNC port • Supports IEEE802.3 & IEEE802.3u standards • Supports IEEE802.3af and IEEE802.3at PoE standards • Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps • Supports MDI/MDIX self-adaption • Supports long range power supply transmission via coaxial cable • DIN rail mountable
- Dimensions: 79mm x 52mm x 23mm
- Installation: DIN rail mountable
- Network Protocol: IEEE802.3, IEEE802.3u, IEEE802.3x
- Operating Environment: -30°C-65°C / <95% RH
- PoE Protocol: IEEE802.3af, IEEE802.3at
- Ports: 1 x 10/100 Mbps Base-TX, 1 x BNC
- Power Consumption: <2W
- Surge Protection: Common Mode: 4KV / Differential Mode: 2KV
- Transmission Bandwidth: RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
- Weight: 61g
