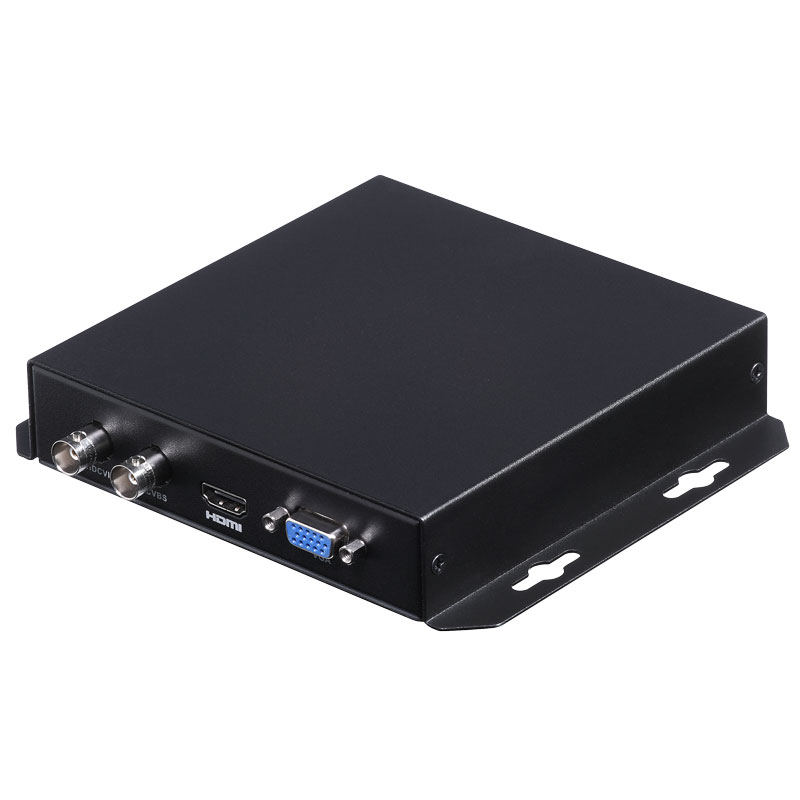

HDCVI to HDCVI / HDMI / VGA / Composite Video Converter

Overview

Securview Victory Series™ HDCVI to HDMI/VGA/Composite Video Converter converts and outputs HDCVI video signal to HDMI, VGA and Composite. It features HDCVI input/output via BNC, making it ideal for extending the display of your HDCVI surveillance camera or recorder to multiple monitors over coaxial cable. Product features: • HDCVI (BNC) input to HDMI / VGA / Composite (BNC) / HDCVI (BNC) outputs • Automatic adjustment of the output signal to the input signal • Real-time transmission, lossless, uncompressed video transmission • Supports 1080p / 720p resolutions (HDCVI / HDMI / VGA) • Supports composite video (CVBS), PAL / NTSC auto detection • RS485 interface, supports data rate 2400b/s, 4800b/s, 9600b/s, 115200b/s • 12VDC 1.25A power supply / 162 x 160 x 30mm / 0.58kg • Wall mount design, dust tight chassis / -10° ~ 55°C operating temp.

• Category: HDCVI Surveillance
• Dial Switch: 2 x Dial Switches control Baud rate: 2400b/s, 4800b/s, 9600b/s, 115200b/s
• Dimensions: 162 x 136 x 30mm
• Input & HDCVI Output Transmission Distance: 1080p/720p: Up to 100m (75-5 coaxial)
• Input Ports: HDCVI (BNC)
• Installation: Wall Mount
• LED Status Indicators: Power / Video / Data
• Operating Environment: -10 ~ 55°C / 10 ~ 90%RH
• Output Ports: HDMI, VGA, Composite (BNC), HDCVI (BNC)
• Power Consumption: ≤8W
• Power Supply: 12VDC 2A
• Supported Resolutions: 720p / 1080p @ HDCVI / HDMI / VGA / Composite Video (Composite) - PAL/NTSC auto detection
