Securview

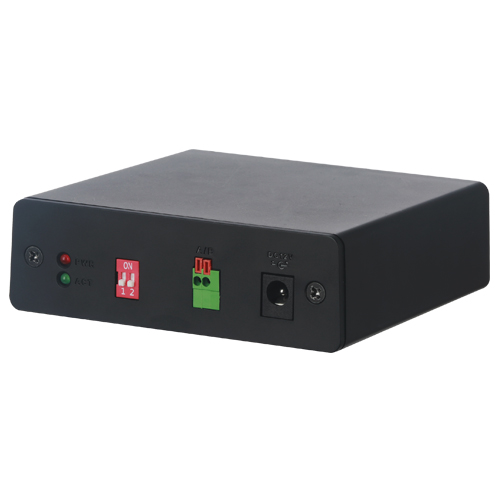

Alarm Module
Part no. VSCVIARB · Warranty 12 months
$49.05inc GST
In stock
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.
Overview
The VSCVIARB is the perfect solution for adding additional alarm outputs to any Digital Video Recorder. Product features: • 16 channel alarm input • 6 channel alarm output • Supports 2-bit DIP switch (1/2) to determine different alarm box access • Power indicator (PWR) when device is powered on • Signal communication indicator (ACT) lights up every 1 second during communication between the alarm box and DVR equipment • 12VDC power input (PSU not included)
- Channel In: 16
- Channel out: 6
- Communication: 1 x RS485
- Dimension: 97.68mm x 90.3mm x 33mm
- DIP Switch: 2-bit
- Operating Humidity: 10%~ 90%
- Operating Temperature: -10°C ~ +55°C (+14°F ~ +131°F)
- Power Consumption: 0.2W
- Power Input: 12VDC
- Weight: <0.2kg
