Aten
Part no. VE814A-ATA-U · Warranty 36 months
RRP $1,063.00 · You save $38.75
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.

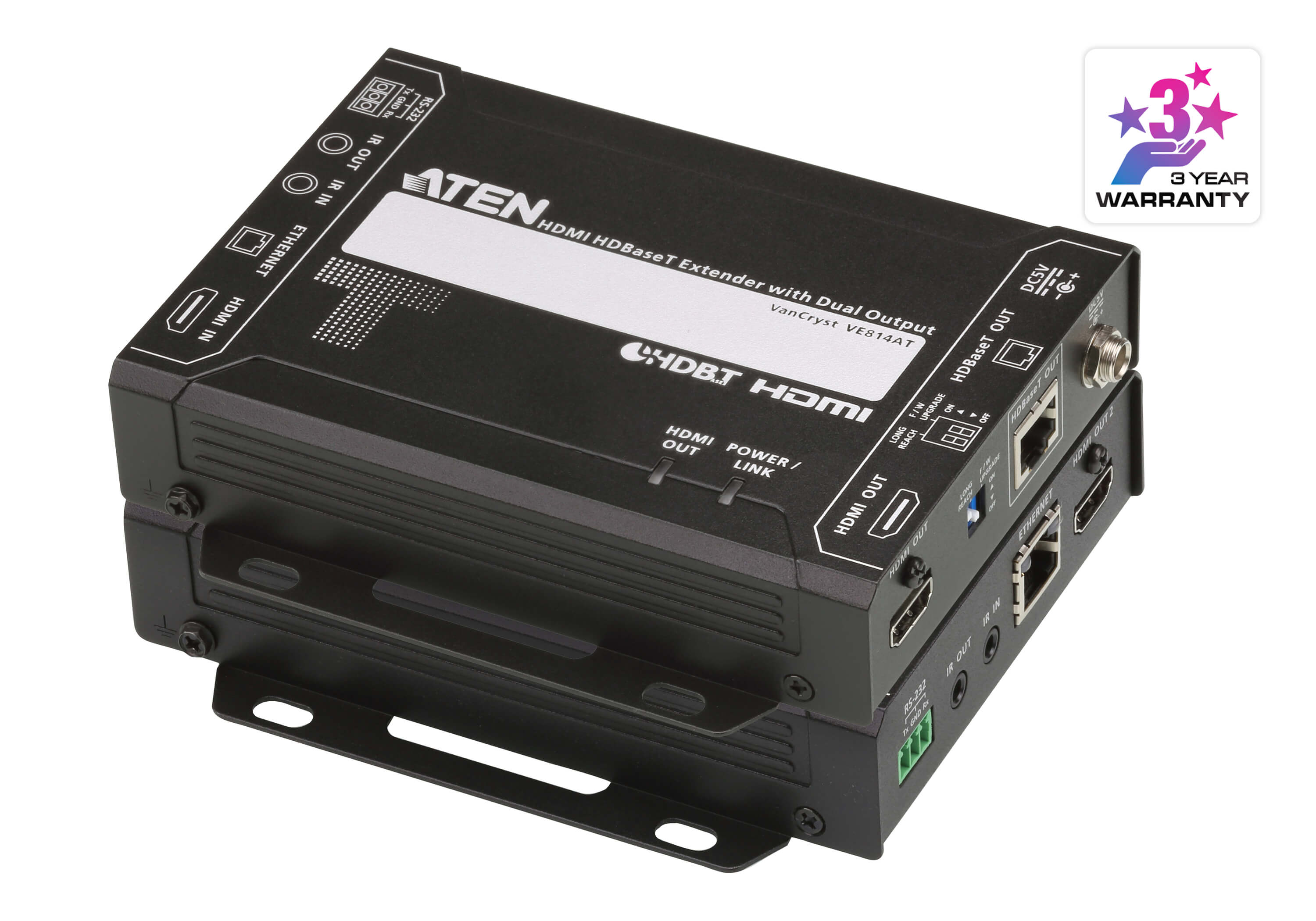

ATEN VE814A is an HDBaseT Video Extender that is capable of sending HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring dual synchronous outputs, the VE814A can transmit video signal to two remote displays and one at the local side. This HDCP 2.2-compliant extender meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m. HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible Superior video quality: • 4K up to 100 m • 1080p up to 150 m when in HDBaseT Long Reach Mode ATEN EDID Technology -- when both transmitter and receiver sides are connected, VE814A adopts the EDID values of the display connected to the VE814AT for high-quality output RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners Supports wide screen format Built-in 8 kV/15 kV ESD protection Plug-and-play Rack-mountable VE814AR VE814AT Video Max. Data Rate 10.2Gbps (3.4Gbps per lane) Max. Pixel Clock 340 MHz Compliance HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC) Max. Resolutions / Distance Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) Audio Unit To Unit 1 x RJ-45 Female Control RS-232 Connector: 1 x Terminal Block, 3 pole Baud Rate: 57600, Data Bits:8, Stop Bits:1, no parity and flow control IR 2 x Mini Stereo Jack Female (Black) Ethernet 1 x RJ-45 Female Note: The RJ-45 ports is functional for device supporting the Ethernet port only Switches Long Reach Mode Switch 1 x Slide Switch - ON/OFF Firmware Upgrade 1 x Slide Switch - ON/OFF Environmental Operating Temperature 0 - 40°C Storage Temperature -20 - 60°C Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing Metal
