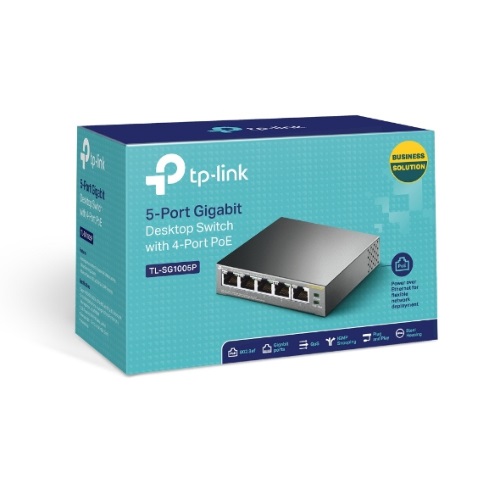

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE, 5 Gigabit RJ45 ports including 4 PoE ports, 56W PoE Power supply, steel case

Overview

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE 56W 5 10/100/1000Mbps RJ45 ports With four PoE ports, transfers data and power on one single cable Working with IEEE 802.3af compliant PDs, expands home and office network 802.1p/DSCP QoS enable smooth latency-sensitive traffic Supports PoE Power up to 15.4W for each PoE port Supports PoE Power up to 56W for all PoE ports Requires no configuration and installation HARDWARE FEATURES Interface • 5× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless External Power Supply External Power Adapter (Output: 53.5 VDC / 1.31 A) Packet Forwarding Rate 7.44 Mpps PoE Ports (RJ45) • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 65 W Mac Address Table 2K Jumbo Frame 16 KB Switching Capacity 10 Gbps Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8×98×25 mm) Max Power Consumption • 4.29 W (220/50 Hz. no PD connected) • 74.24 W (220/50 Hz. with 65 W PD connected) Max Heat Dissipation • 14.63 BTU/h (no PD connected) • 253.16 BTU/h (with 65 W PD connected) SOFTWARE FEATURES Advanced Features • Compatible With IEEE 802.3af/at Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping
