APC
Part no. SBP16KP · Warranty 24 months
RRP $4,097.50 · You save $923.50
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.

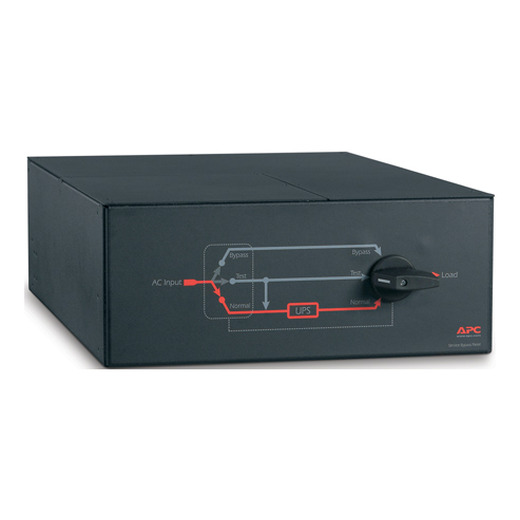

APC Service Bypass Panel 200/208/240 V, 100 A, MBB, Hardwire input/output Main Input Voltage 200 V 208 V 230 V 480 V 3 phases Main Output Voltage 120 V 200 V 208 V 230 V Other Output Voltage 220 V 240 V Output connector type Hard wire 3-wire (H N + E) 1, Hard wire 3-wire (2P + E) 1, Hard wire 4-wire (2P + N + E) 1 Number of rack unit 4U Number of cables 1 Provided equipment Installation guide Rack mounting brackets User manual Network frequency 50/60 Hz Number of input connectors 1 hard wire 3-wire (H N + E), 1 hard wire 3-wire (2P + E), 1 hard wire 4-wire (2P + N + E), 1 hard wire 5-wire (3P + N + E) Permissible voltage 200…240 V Max line current 100 A Input current limits 100 A Load capacity 20000 VA Power factor 0…1 Max current draw 100 A Protection type Circuit breaker Efficiency 99 % Product certifications CSA GOST Standards EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 Ambient air temperature for operation -20…50 °C Relative humidity 0…95 % Operating altitude 0...15000 ft Ambient air temperature for storage -40…65 °C Storage Relative Humidity 0…95 % Storage altitude 0.00…15240.00 m Mounting mode- Rack mounted
