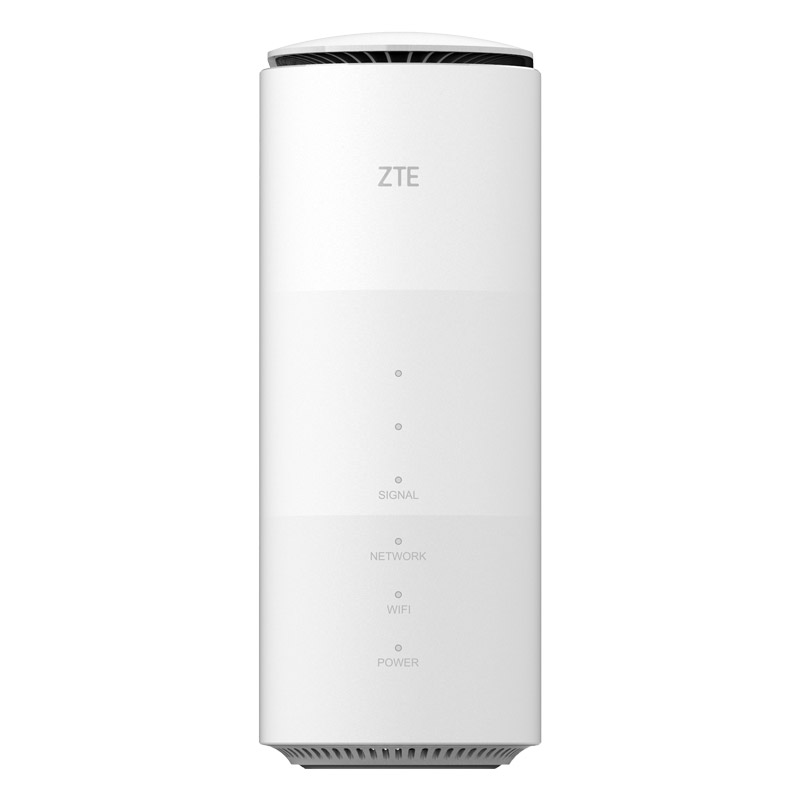

Ultra 5G/4G Dual Band Wireless Modem Router
Part no. RTR-ZL · Warranty 12 months
$487.10inc GST
In stock
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.
Overview
Offering flagship performance, the RTR-ZL 5G/4G wireless modem router delivers amazing mobile broadband and WiFi speeds in a stylish package. It features dual-band WiFi 6 support and can handle up to 64 simultaneous users. With maximum 5G speeds up to 3.8Gbps and LTE-Advanced 4G speeds up to 1Gbps, it is the high-bandwidth router choice for use in enterprise and enthusiast applications. Its advanced performance with 5G carrier aggregation makes it a top choice for homes or businesses requiring ultra-fast, stable wireless connectivity. The RTR-ZL utilises the latest Snapdragon X62 chipset for superior speed, performance and reliability. • 5G NR NSA/SA with carrier aggregation support; nano sized SIM slot • 5G max. data throughput 3800/900Mbps download/upload* • N1/3/7/8/20/28/38/40/41/75/77/78 5G band support • 4G/LTE-A CAT16 with carrier aggregation support • 4G max. data throughput 1000/150Mbps download/upload* • FDD-LTE B1/3/4/5/7/8/20/28/32, TDD-LTE B38/40/41/42/43 4G band support • Dual band WiFi 6, 802.11 b/g/n/ac/ax standard, 2.4GHz & 5GHz MIMO 2x2 antenna • 2.4GHz 688Mbps* and 5GHz 2882Mbps* WiFi max. data throughput • WPA/WPA-PSK/WPA2/WPA2-PSK/WPA3-PSK WiFi security protocols • 2 x RJ45 1000M Ethernet, including 1 x LAN/WAN port • Supports up to 64 simultaneous wireless users • Built-in WiFi & 5G/4G antennas • 12VDC/1.5A input power • Manage router configuration via Web UI or Smartlife app * Maximum data rates are network and environment dependent; theoretical maximum values shown; actual results will vary
- Backup Battery: -
- Cellular Antenna: Built-in 5G/4G Antenna, 26dBm (N41/78) and 23dBm Max. Tx Power
- Cellular Category: 5G NR NSA/SA with 5 Carrier Aggregation, 4G/LTE-Advanced CAT16
- Certifications: CE, WEEE, RoHS, WiFi
- Device Indicators: Power/WiFi/Network LED Indicators, WPS/Reset Buttons
- Dimensions: 182 x 124 x 70mm
- Input Power: 12VDC 1.5A
- Management Platform: Web UI, Smartlife App
- Max. Data Throughput (Down/Up): 5G 3800/900Mbps*, FDD-LTE 1000/150Mbps*
- Network Interface: 2 x RJ45 (1000M) (1 x WAN/LAN), 1 x Nano SIM Slot, 1 x RJ11
- Operating Environment: -20-55°C Temperature, 5-95% Humidity
- Software Functions: MAC address filtering, Wi-Fi encryption authentication, VPN Pass-through, IPV4/IPV6, VoLTE, VoIP, DMZ, SSID, Guest SSID, Port Forwarding, Watchdog Service, DHCP, APN, Firewall, Hybrid Mode (LAN/WLAN)
