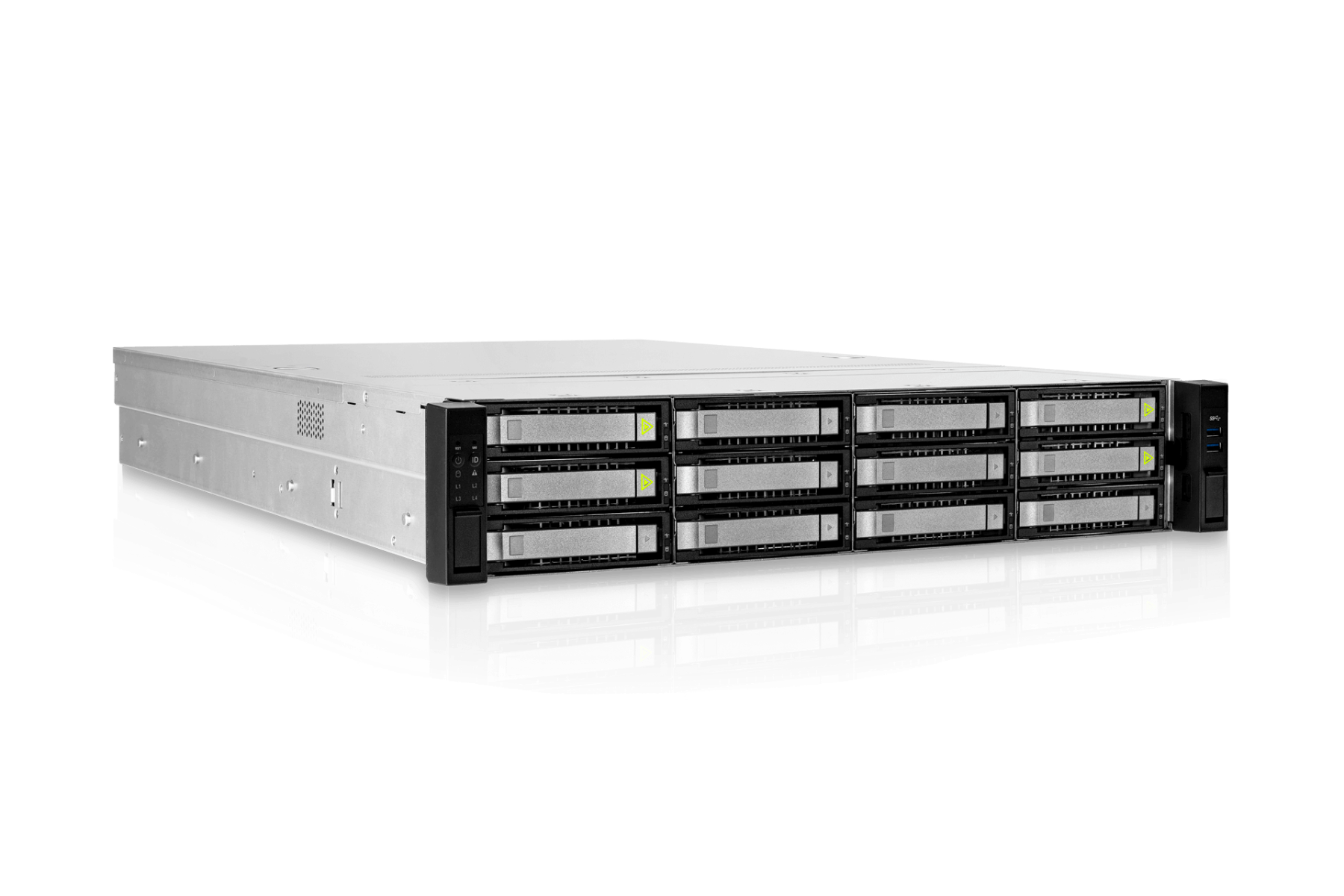

Inwin
Part no. RS212-07
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.
We need to check the weight and size of this item and confirm delivery options manually.
SPECIFICATIONS & DETAILS Model Name IW-RS212-07 Specifications MODEL SERIES 2U NVMe Hybrid Storage Server Industry Standard EIA-RS310D M/B Form Factor ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") Drive Bay • External 2.5"/3.5" hot-swap trays x 12 (optional U.2 NVMe SSD tray x 4) • Rear 2.5" screwless hot-swap SSD trays x 2 (supports SAS 12Gbps) Power Supply • Form factor: 80 Plus Platinum • 1200W Redundant PSUs Indicator Power LED, LAN1/LAN2/LAN3/LAN4 LED, system LED, ID LED, HDD LED Front Control Panel Power on/off, reset, NMI, ID SW, USB 3.0 x 2 Backplane Type-1 • Host: Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 4 • HDD: SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4 Backplane Type-2 • Host: Mini-SAS HD (SFF-8643) x 3, OCuLink (SFF-8611) x 4 • HDD: SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4 12Gbps Expander Module Supports LSI 3 x 36R expander Cooling Fan 80 x 38mm PWM hot-swap fans x 4, 12000RPM Modular design with anti-vibration Expansion Slot Low-profile PCIe slots x 7 Material • Material: SGCC • Thickness: 1.0mm Rail Kit Supports 28" tool-less & ball-bearing slide rails Product Dimensions (DxWxH; Chassis Only) 660 x 448 x 87.5mm (26 x 17.6" x 3.4")" Package Dimensions (DxWxH) 845 x 595 x 223mm Weight (Chassis Only) • Net weight: 13.09kg • Gross weight: 16.51kg Cubic Feet 3.96 Container Information Single packing with pallets: • 20': 160pcs • 40': 368pcs • 40' HQ: 414pcs 12Gbps Backplane Specifications Backplane Type-1 Mini-SAS HD & Slimline backplane Dimension (W x H) 405mm x 72.3mm Backplane Type Active with expander onboard Host Interface Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 4 HDD Interface SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4 Backplane Type-2 Mini-SAS HD & OCuLink backplane Dimension (W x H) 405mm x 72.3mm Backplane Type Active with expander onboard Host Interface Mini-SAS HD (SFF-8643) x 3, OCuLink (SFF-8611) x 4 HDD Interface SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4
