Securview

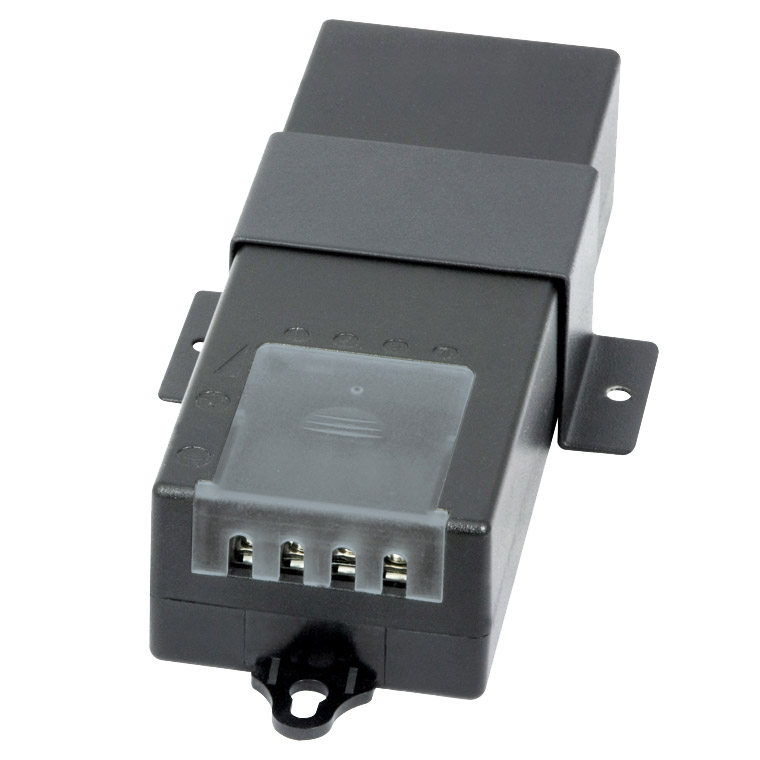

4 Channel 12VDC 5A Power Supply
Part no. PS12V5A4CH · Warranty 12 months
$45.20inc GST
In stock
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.
Overview
The PS12V5A4CH is a 4-channel 5-Amp power supply. While normally used in CCTV installations, it is suitable for a wide variety of both CCTV and access control applications. It features adjustable output voltage and built-in 6.8-Amp overcurrent protection. • 4-Channel 5-Amp power distribution • Can be mounted with the bracket for easy access and reduced power cord clutter • Universal input voltage: 100~240 VAC • Adjustable output voltage: 12~13.8 VDC • Built-in 6.8-Amp overcurrent protection. • High voltage and overcurrent protection • LED Power indicator
- Dimensions: 150 x 55 x 33mm
- Input Fuse: 3.15A@250 VAC
- Input Voltage: 100~240 VAC
- Max. Output Power: 60W
- Operating Temperature: -10° ~ 45°C
- Output Voltage: 12~13.8 VDC
- Outputs: 4
- Over Current Protection: 12VDC/6.8A
- Total Supply Current: 5A
- Weight: 380g
