Takex

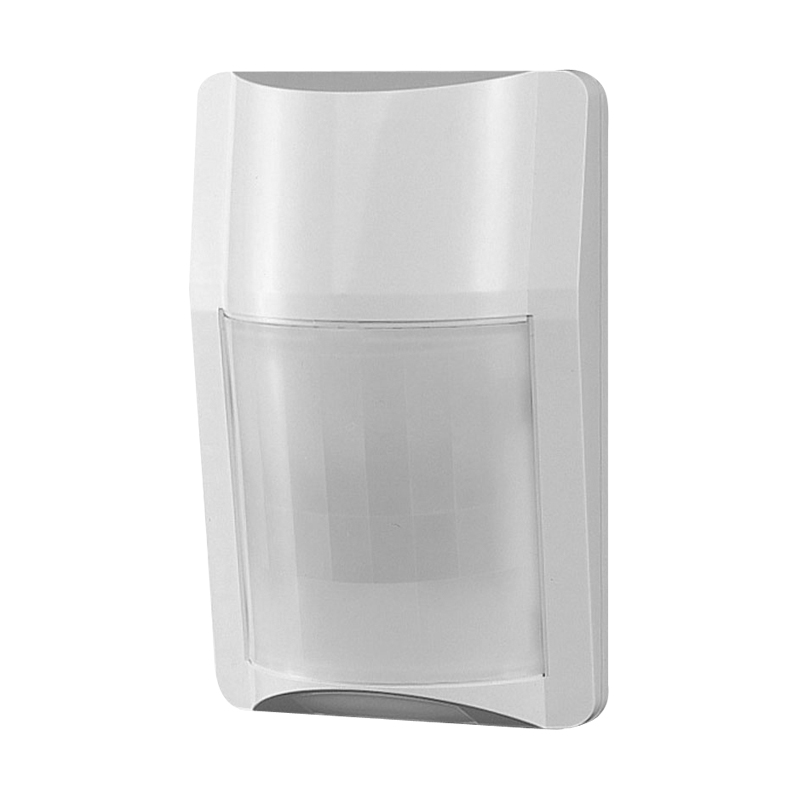

Wide Angle PIR Sensor
Part no. PIR-T45W · Warranty 12 months
$46.45inc GST
In stock
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.
Overview
The PIR-T45W PIR Sensor from Takex is built with infrared detection up to 11 meters and 84° wide angle field of detection to detect intruders. Designed to integrate with our range of Watchguard™ Hardwired Alarm Systems. Ideal for indoor residential and commercial. Product Features: • Passive infrared detection up to 11m and 84° wide angle field of detection • Adjust the coverage area for different mounting heights • Sensitive Zones - 18 pairs • ABS Plastic housing built for indoor environments • Input voltage: 9 ~18VDC • Made in Japan * Can be wall/ceiling mounted (bracket sold separately PIR-T4BKT)
- Alarm Output: Yes
- Dimensions: 70 x 45 x 110mm
- Housing: ABS Plastic (Body) , PE Plastic (Lens)
- Infrared Detection Range: 11m , 84° (field of detection)
- Infrared Type: Passive Infrared - Wide Angle
- Input Voltage: 9~18VDC
- Mounting Options: Wall / Ceiling (bracket sold separately)
- Operating Conditions: -15°C ~ +55°C without condensation
- Pet Immunity: No
- Sensitive Zones: 18 pairs
- Tamper Protection: Yes
- Transmitting Current: 25mA Max.
