Overview

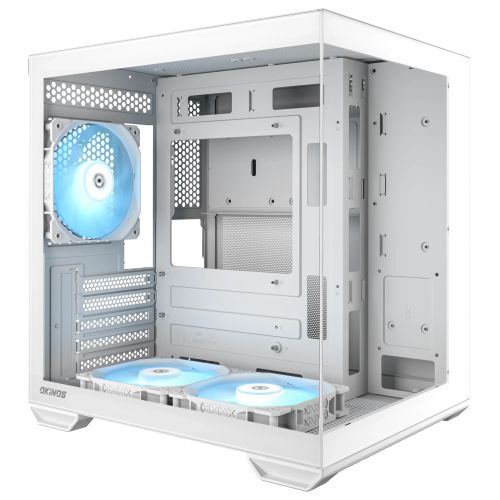

OKINOS Mirage 4 White Essential Mini-Tower Gaming PC Case
Special Features
•270-degree panoramic design enhances aesthetics and openness, featuring a tool-free tempered glass panel for easy access and added protection.
•Vertical airflow system supports up to 5 fans, optimizing bottom-to-top thermal management for superior cooling efficiency.
•The right panel is equipped with a 1.2mm mesh, enhancing airflow for superior cooling performance.
•Pre-installed 2 x 120mm D12R ARGB 3-Pin at the bottom, and 1 x 120mm D12 ARGB 3-Pin at the rear
•5-slot PCIe layout improves GPU compatibility and improves cooling space.
•Pre-locked copper standoffs for easy installation and removal.
•Full-size magnetic dust filters on the top and bottom ensure clean airflow and easy maintenance.
•Generous cable management space: 95mm on the right and 45mm on the left, ensuring a seamless and hassle-free building experience.•
SPECIFICATIONS
Model Name Mirage 4 ES White
Model Number OKICC-MG4ES-MATXW
EAN 4897121941499
Dimensions 347 x 275 x 355mm (DWH)
Form Factor Mini Tower
Materials Steel
Mainboard Support Micro-ATX, ITX
Front Access & Controls Power, LED Control Button, USB3.0 x 1, USB 2.0 x 1, Type-C 3.2 Gen 1 (5 Gbps)x 1, Headphone/Mic Combo Jack
Side Panel Tempered Glass Side Panel
Drive Bays
Expansion Slots 5
3.5″ 1
2.5″ 3
Fan Support
Top 2 x 120mm
Bottom 2 x 120mm
Rear 1 x 120mm
Included Fan(s) 2 x 120 D12R ARGB Annxe reserve fans at bottom + 1 x 120 D12 ARGB Main fan in rear
Radiator Support
Top 240/120mm
Rear 120mm
Clearance
Max GPU Length ≤325mm
Max CPU Cooler Height ≤155mm
Max PSU Length (Without cable)≤180mm
Miscellaneous
Dust Filter Top / Bottom
Net Weight 4.41 Kg
Gross Weight 5.61 Kg
