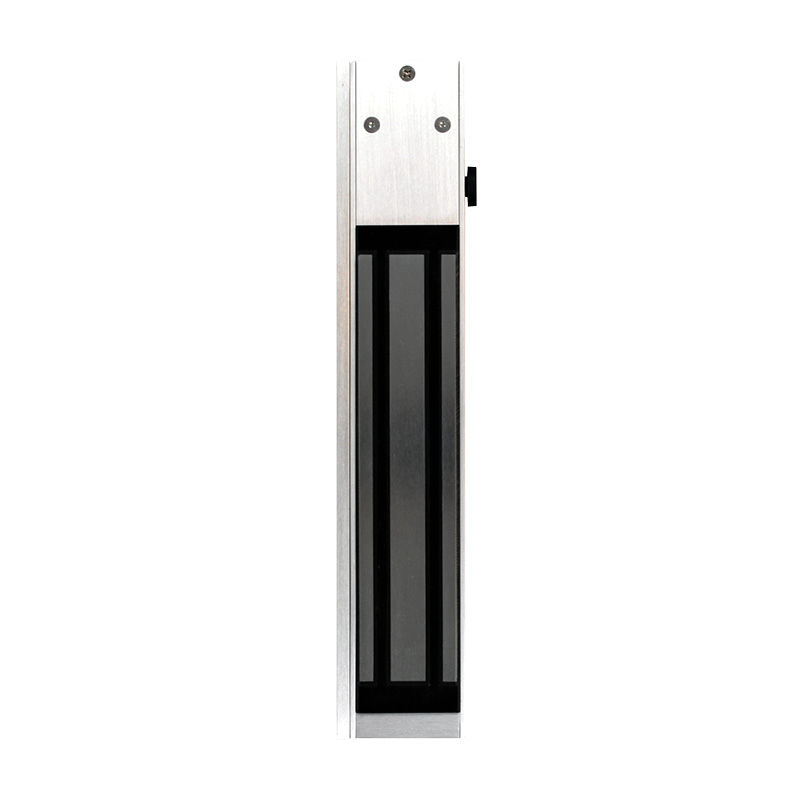

Surface Mount Magnetic Lock - Door & Lock Monitored with Timer

Watchguard

Surface Mount Magnetic Lock - Door & Lock Monitored with Timer

Part no. MAGLOC100S-DST · Warranty 12 months

$186.95inc GST
In stock

Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.

Overview

The Watchguard™ MAGLOC Series comprises affordable access solutions, with a wide range of electromagnetic locks and accessories to safely and securely control access in your home or business. The MAGLOC100S-DST is a surface mounted electromagnetic door lock, designed for indoor use. It is the optimal choice for alarm integration with lock/door status sensors and a configurable timer (1~90s). This model includes the electromagnetic lock, armature plate and mounting component kit. Product features: • Surface mount design • 270kg approximate holding force • Anodised aluminium face plate with zinc finish • Lock and door status sensors • Configurable delay timer 1~90s • 12V/24VDC selectable power input • Overvoltage/voltage spike protection

  • Armature Dimensions: 185 x 38 x 12.5mm
  • Construction: Anodised Aluminium with Zinc Finish
  • Current Draw: 500mA@12V / 250mA@24V
  • Door Status Sensor: Yes
  • Holding Force: 270kg
  • Lock Configuration: Fail Safe
  • Lock Dimensions: 250 x 47.2 x 26.5mm
  • Lock Status Sensor: Yes
  • Power Input: 12VDC / 24VDC (selectable)
  • Timer: Yes (1~90s)
  • Type: Surface Mount
  • Weather Rating: Indoor Only
