PANORAMA
Part no. LG5AQM4-7-42 · Warranty 12 months
RRP $441.71 · You save $83.31
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.

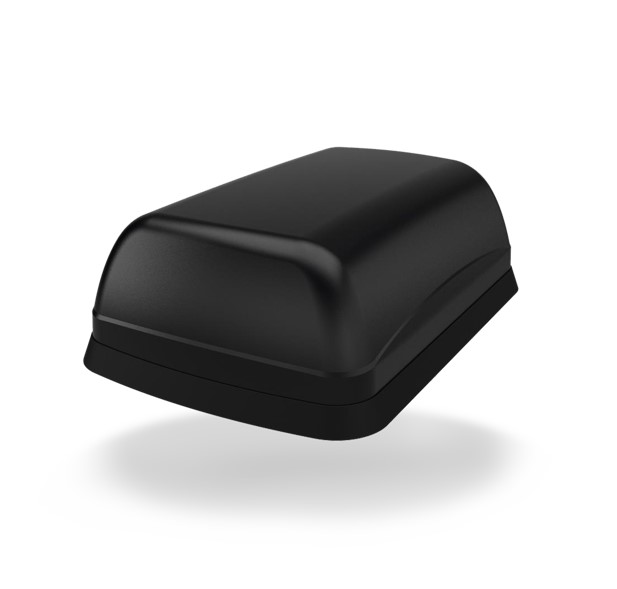

PANORAMA Low Profile Housing Contains 4x 4G LTE / 5G NR elements covering 698-960/1427-4200MHz. 4X4 MiMo 4G/5G IOT Antenna PANORAMA MiMo antenna is designed to be a one size fits all solution for IOT applications. The robust low profile housing contains 4x 4G LTE / 5G NR elements covering 698-960/1427-4200MHz. Versions of the product also contain up to 4x optional WiFi elements supporting WiFi 6e 2.4/5.150-7.125GHz and optional L1 only or L1/L5 GPS/GNSS. The housing is constructed from robust, flame retardant, impact resistant plastic. The subtle, curved design makes the product harder to vandalise and the IK10 rating ensures that the product is suitable for use in tough environments and devices located in public areas. The housing is UV stable and approved to IP69K for ingress protection. The product is supplied with integrated low loss flame retardant cables approved to UN ECE R118 and fitted connectors offer plug and play connectivity for a huge range of devices. The Clam® can be installed on conductive or non-conductive panels without significant detriment to performance. ELECTRICAL DATA: Pattern Omnidirectional Max Input Power(W) 5 Typical VSWR <2.5:1 Frequency Range | Gain Check the part number table Cellular LTE Elements 4 x 4 MIMO WIFI Elements 4 x 4 MIMO; 2 x 2 MIMO; No UHF Elements No GPS DATA: GPS Frequency Range 1164-1189MHz/1559-1612MHZ; 1559-1612MHz LNA GAIN (dB) 30 / 26; 26 Number of GPS Elements 1 Module; No MECHANICAL DATA: Colour Black Length 175 (mm) | 6.89 (in) Width 118 (mm) | 4.65 (in) Height 56.9 (mm) | 2.24 (in) Operating Temperature -40°/ +85°C (-40.0°/ +185.0°F) CABLE DATA: Cable Length – LTE: 2 (m) | 6.56 (ft) Cable length – GPS: 2 (m) | 6.56 (ft) Cable Length – WIFI: 2 (m) | 6.56 (ft) TERMINATION DATA: Connector (WIFI) Reverse Polarity SMA; SMA Rev Pol Connector (GPS) SMA (m) Connector (LTE) SMA (m) MOUNTING DATA: Mounting Type Fixed Panel Mounting Methods: Panel
