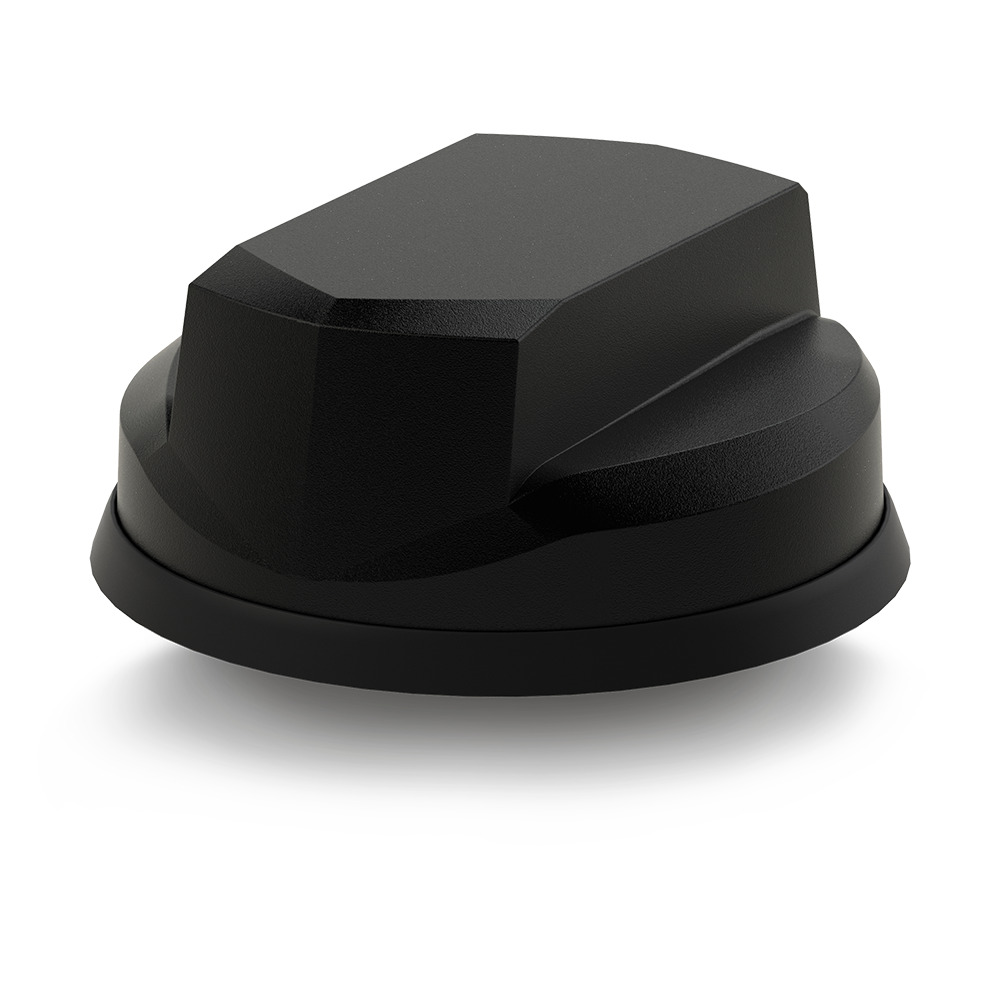

PANORAMA 9-in-1 4G/5G DOME Antenna Black 5m FTD CABLS ‘Great White’ | 2×2 MiMo 4G/5G,SMA (m) 617-960/1427-6000MHz, IK10, IP69K

Overview

PANORAMA 9-in-1 4G/5G DOME Antenna Black 5m FTD CABLS ‘Great White’ | 2×2 MiMo 4G/5G,SMA (m) 617-960/1427-6000MHz, IK10, IP69K The L[G]M[X]M[X]-6-60[-24-58] range has been designed to provide 2×2 4G/5G MiMo performance from 617-960/1427-6000MHz in a robust low profile package.The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and up to 6×6 MiMo WiFi 2.4/4.9-7.2GHz.The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UN ECE R118.03 and EN45545-2) and a halogen-free flame retardant radome the antenna is suitable for many environments and applications.The LGM variants have an integrated GPS/GNSS module supporting GPS, Glonass, Galileo and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in-band interference. Pattern Omnidirectional Max Input Power(W) 20 Frequency Range | Gain 617 – 960MHz | 5dBi; 1710 – 3800MHz | 9dBi; 4900 – 6000MHz | 10dBi Cellular LTE Elements 2 x 2 MIMO WIFI Elements 6 x 6 MIMO; No; 2 x 2 MIMO; 4 x 4 MIMO; 3 x 3 MIMO UHF Elements No GPS Frequency Range 1562-1612MHz LNA GAIN (dB) 26 Number of GPS Elements 1 Module; No Cable Length – LTE min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) Cable length – GPS min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) Cable Length – WIFI min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) Cable Type (LTE) FR RG174 Cable Type (GPS) FR RG174 Cable Type (WIFI) FR RG174 Quantity of Cell Cable 2 Quantity of GPS/GNSS Extension 1 Quantity of WIFI Extension max: 6 Connector (WIFI) Reverse Polarity SMA; SMA (f) Connector (GPS) SMA (m); FME (f) Connector (LTE) SMA (m) MOUNTING DATA Mounting Type Fixed Panel Mounting Type Temp Magnetic Mounting Methods Panel
