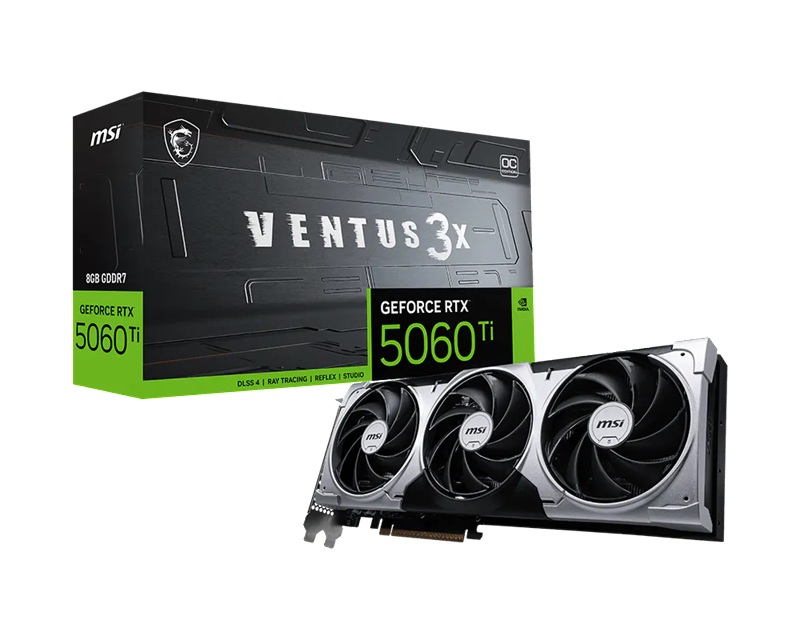

MSI nVidia GeForce RTX™ 5060 Ti 8G VENTUS 3X OC, PCI Express® Gen 5 x 16, Boost: 2602 MHz, CUDA 4608 Units, 8GB GDDR7, HDMI™ x 1

Overview

MSI nVidia GeForce RTX™ 5060 Ti 8G VENTUS 3X OC, PCI Express® Gen 5 x 16, Boost: 2602 MHz, CUDA 4608 Units, 8GB GDDR7, HDMI™ x 1 SPECIFICATIONS Marketing Name GeForce RTX™ 5060 Ti 8G VENTUS 3X OC Model Name G506T-8V3C Graphics Processing Unit NVIDIA® GeForce RTX™ 5060 Ti Interface PCI Express® Gen 5 x16 (uses x8) Core Clocks Extreme Performance: 2617 MHz (MSI Center) Boost: 2602 MHz CUDA® CORES 4608 Units Memory Speed 28 Gbps Memory 8GB GDDR7 Memory Bus 128-bit Output DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) HDCP Support Y Power consumption 180 W Power connectors 8-pin x 1 Recommended PSU 600 W Card Dimension (mm) 304 x 121 x 44 mm Weight (Card / Package) 793 g / 1162 g DirectX Version Support 12 Ultimate OpenGL Version Support 4.6 Maximum Displays 4 G-SYNC® technology Y Digital Maximum Resolution 7680 x 4320 FEATURES Triple Fan Three fans and a huge heatsink ensure a cool and quiet experience for you. TORX FAN 5.0 Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow. Solid Baseplate A solid baseplate transfers heat from the GPU to all heat pipes for better cooling. Reinforcing Backplate The reinforcing backplate features a flow-through design that provides additional ventilation. Zero Frozr The fans completely stop when temperatures are relatively low, eliminating all noise. DrMOS DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls. Fuse Additional fuses built into the custom PCB provide additional safeguards against electrical damage. MSI Center The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time. Afterburner Take full control with the most recognized and widely used graphics card overclocking software in the world.
