Ubiquiti

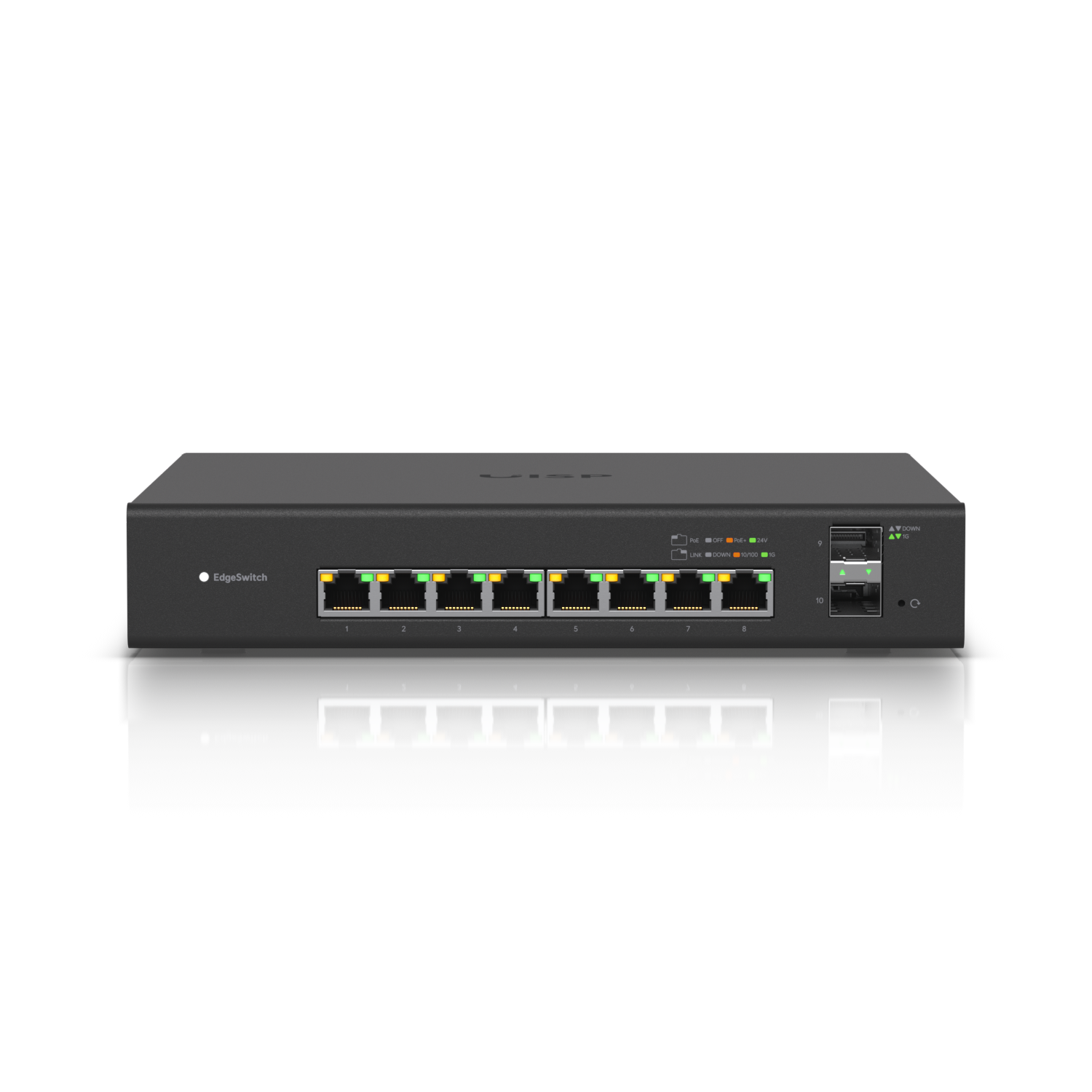

Part no. ES-8-150W-AU
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.
We need to check the weight and size of this item and confirm delivery options manually.
Mechanical Dimensions 204 x 43 x 235 mm (8 x 1.7 x 9.3") Weight 1.7 kg (3.8 lb) Hardware Management Interface (1) RJ45 serial port, Ethernet In/Out-Band Networking Interface (8) GbE RJ45 ports; (2) 1G SFP ports PoE Interface (8) PoE/PoE+ 2-pair (Pins 1, 2+; 3, 6-) (8) 24V/0.7A passive PoE 2-pair (Pins 4, 5+; 7, 8-) Total Non-Blocking Throughput 10 Gbps Switching Capacity 20 Gbps Forwarding Rate 14.88 Mpps Power Method 100–240V AC, universal input, 50/60 Hz, AC/DC integrated PSU 42–56V DC terminal block, external input (self-correcting polarity protection) Power Supply AC/DC, internal, 150W DC Max. Power Consumption 20W (excludes PoE output) Total PoE Available 150W Max. PoE Wattage per Port (PSE) PoE+: 34.2W; Passive PoE: 17W Voltage Range PoE Mode PoE+: 50–57V; Passive PoE: 20–27V ESD/EMP Protection Air/contact: ±24kV LEDs System: status Ethernet ports: PoE, link/speed/activity SFP ports: link/speed/activity Button Factory reset Shock and Vibration ETSI300-019-1.4 Standard Ambient Operating Temperature Internal AC/DC at 150W: -25 to 45°C (-13 to 113°F) Internal AC/DC at 100W: -25 to 55°C (-13 to 131°F) External DC: -25 to 60°C (-13 to 140°F) Ambient Operating Humidity 5 to 95% non-condensing Certifications CE, FCC, IC, Anatel: 07833-18-08356 NDAA Compliant Yes
