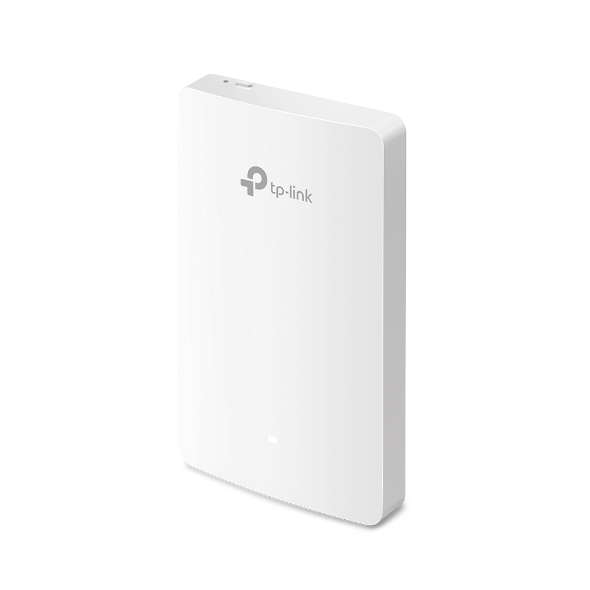

TP-Link EAP615-Wall Omada AX1800 Wall Plate WiFi 6 Access Point, 1201/574 Mbps, 4x Gigabit Ethernet Port, 2x Antenna, Centralised Management

Overview

TP-Link EAP615-Wall AX1800 Wall Plate WiFi 6 Access Point • Superior WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.** • High-Performance Connectivity: Guarantee higher network efficiency and lower latency. • Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired devices.‡ • Centralised Management: Integrates into Omada SDN for cloud access and remote management. • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies. • Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support. HARDWARE FEATURES Interface • Uplink: 1× 10/100/1000 Mbps Ethernet Port • Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.) Physical Security Lock Yes Button Reset Power Supply 802.3af/at PoE Power Consumption EU: 10W (802.3at PoE, PoE Out off) US: 11.5W (802.3at PoE, PoE Out off) Dimensions 143 × 86 × 20 mm Antenna 2 Dual-Band Antennas • 2.4 GHz: 2× 3 dBi • 5 GHz: 2× 4 dBi Mounting Wall Plate Mounting WIRELESS FEATURES Wireless Standards IEEE 802.11ax/ac/n/g/b/a Frequency 2.4 GHz and 5 GHz Signal Rate • 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps MANAGEMENT Omada App Yes Centralized Management • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller Cloud Access Yes (Through OC300, OC200, or Omada Software Controller)
