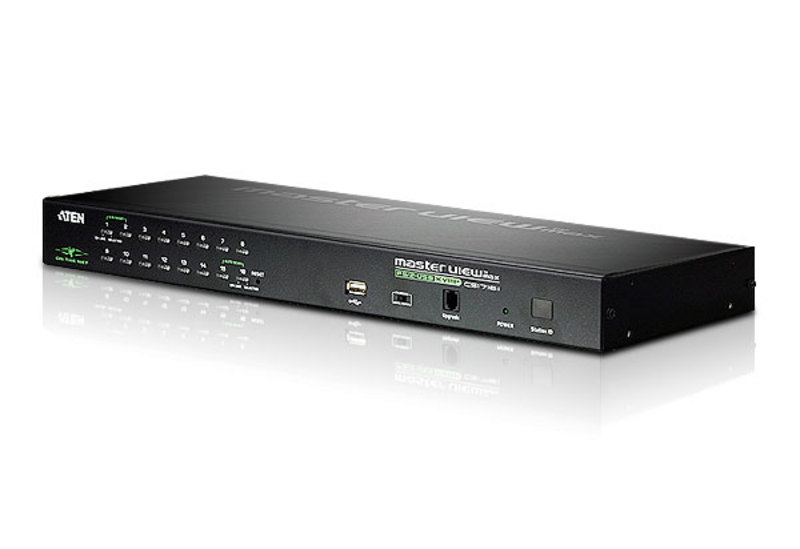

Aten
Part no. CS1716I-AT-U · Warranty 12 months
RRP $1,930.00 · You save $64.40
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.
Superior video quality - up to 2048 x 1536; DDC2B for the local console; up to 1920 x 1200 @ 60Hz** and 1600 x 1200 @ 60Hz / 24 bit color depth for remote sessions Supports TLS 1.2 data encryption and RSA 2048 bit certificates for secure user logins from a browser Panel array mode enables user to monitor multiple servers from single screen at the same time - each selected server's video output appears in a separate panel - users can easily select the number of panels to view Computer Connections Direct 16 Maximum 256 (via daisy chain) Port Selection OSD/GUI; Hotkey; Pushbutton Connectors Console Ports 1 x SPHD-18 Male (Yellow) KVM Ports 16 x SPHD-17 Female (Yellow) Daisy Chain Ports 1 x DB-25 Male Power 1 x DC Jack LAN Ports 1 x RJ-45 Female Firmware Upgrade 1 x RJ-11 USB Port 1 x USB Type A Female Switches Reset 1 x Semi-recessed Pushbutton Port Selection 16 x Pushbutton Firmware Upgrade Recovery 1 x Slide LEDs Online 16 (Orange) Selected 16 (Green) Station ID 1 x 2-digit, 7-segment (Orange) Power 1 (Dark Green) 10/100 Mbps 1 (Orange/Green - at LAN port) Emulation Keyboard / Mouse PS/2, USB Video Local 2048 x 1536; DDC2B Remote FHD : 1920 x 1200 @ 60Hz Non-FHD : 1600 x 1200 @ 60Hz Scan Interval 1–255 sec. Power Consumption DC5.3V:9.2W:58BTU Environmental Operating Temperature 0–50°C Storage Temperature -20–60°C Humidity 0–80% RH, Non-condensing Physical Properties Housing Metal Weight 3.00 kg ( 6.61 lb ) Dimensions (L x W x H) 43.72 x 15.96 x 4.40 cm (17.21 x 6.28 x 1.73 in.) Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
