TP-LINK
Part no. CPE710 · Warranty 36 months
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.

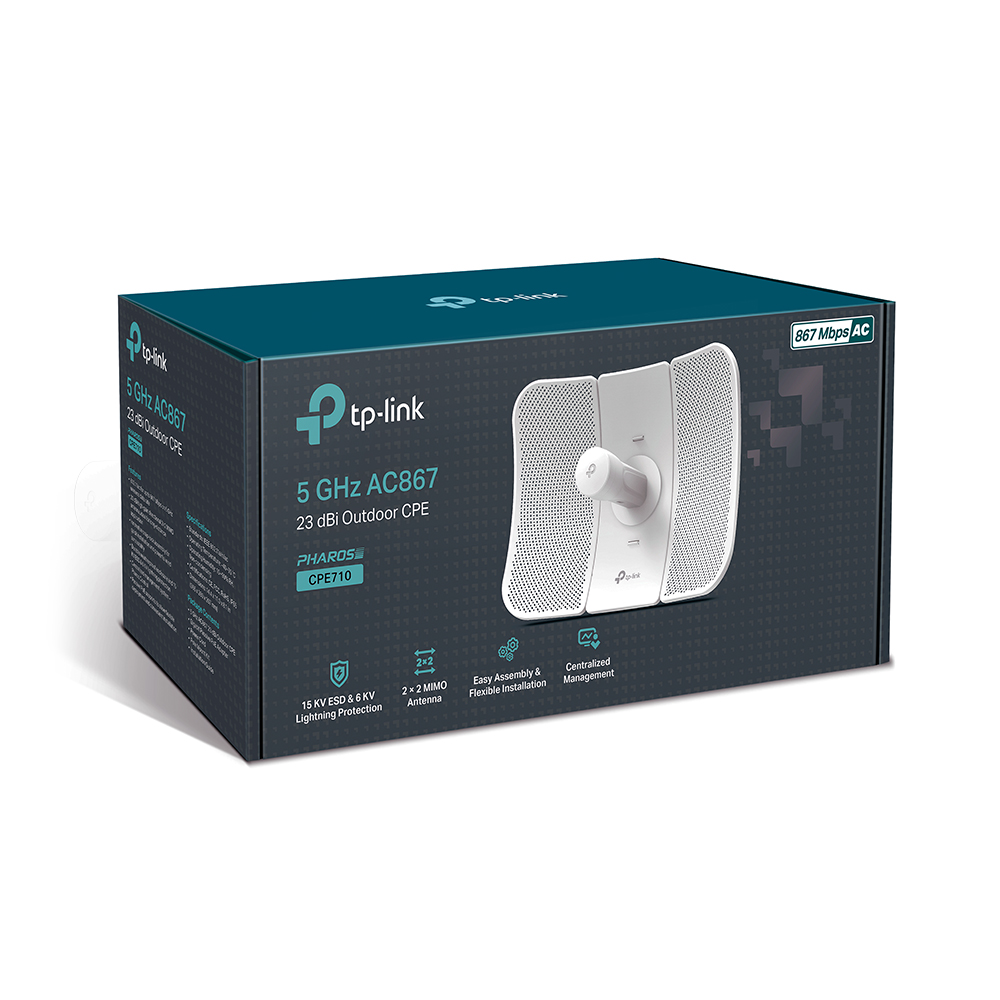

TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE • 802.11ac for up to 867Mbps on 5GHz wireless data rate • 23dBi high-gain directional 2×2 MIMO, ideal for long-distance application • Excellent beam directivity, improved latency and noise cancellation • Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds • Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability • Pharos Control gives administrators a free, centralized management system • Passive PoE supports to allow flexible deployment and convenient installation HARDWARE FEATURES Processor Qualcomm 750MHz CPU, MIPS 74Kc Memory 128 MB DDR2 RAM, 16 MB Flash Interface 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE) 1 Reset Button Power Supply Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) Voltage range: 16-27V DC Dimensions ( W x D x H ) 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) Antenna Gain 23 dBi Antenna Beamwidth 9° (Azimuth)/7° (Elevation) Protection 15 KV ESD Protection 6 KV Lightning Protection Enclosure Material: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof design WIRELESS FEATURES Wireless Standards IEEE 802.11a/n/ac Wireless Speeds Up to 867 Mbps (80 MHz, Dynamic) Up to 400 Mbps (40 MHz, Dynamic) Up to 173.4 Mbps (20 MHz, Dynamic) Frequency 5.15~5.85 GHz Transmit Power Max. 27 dBm (Adjustable power by 1dBm) SOFTWARE FEATURES Network Configuration WAN: Static/ Dynamic/ PPPoE LAN: Static/ Dynamic/ DHCP Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger Security: SPI Firewall/ Ping Forbidden/ DoS Protection Access Control Static Routing Bandwidth Control IP & MAC Binding POE ADAPTER FEATURES Dimensions(W x D x H) 85.8×43.9×29.7 mm
