Adata
Part no. COREREACTORIIVE850G-BKCAU
RRP $169.00 · You save $9.10
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.

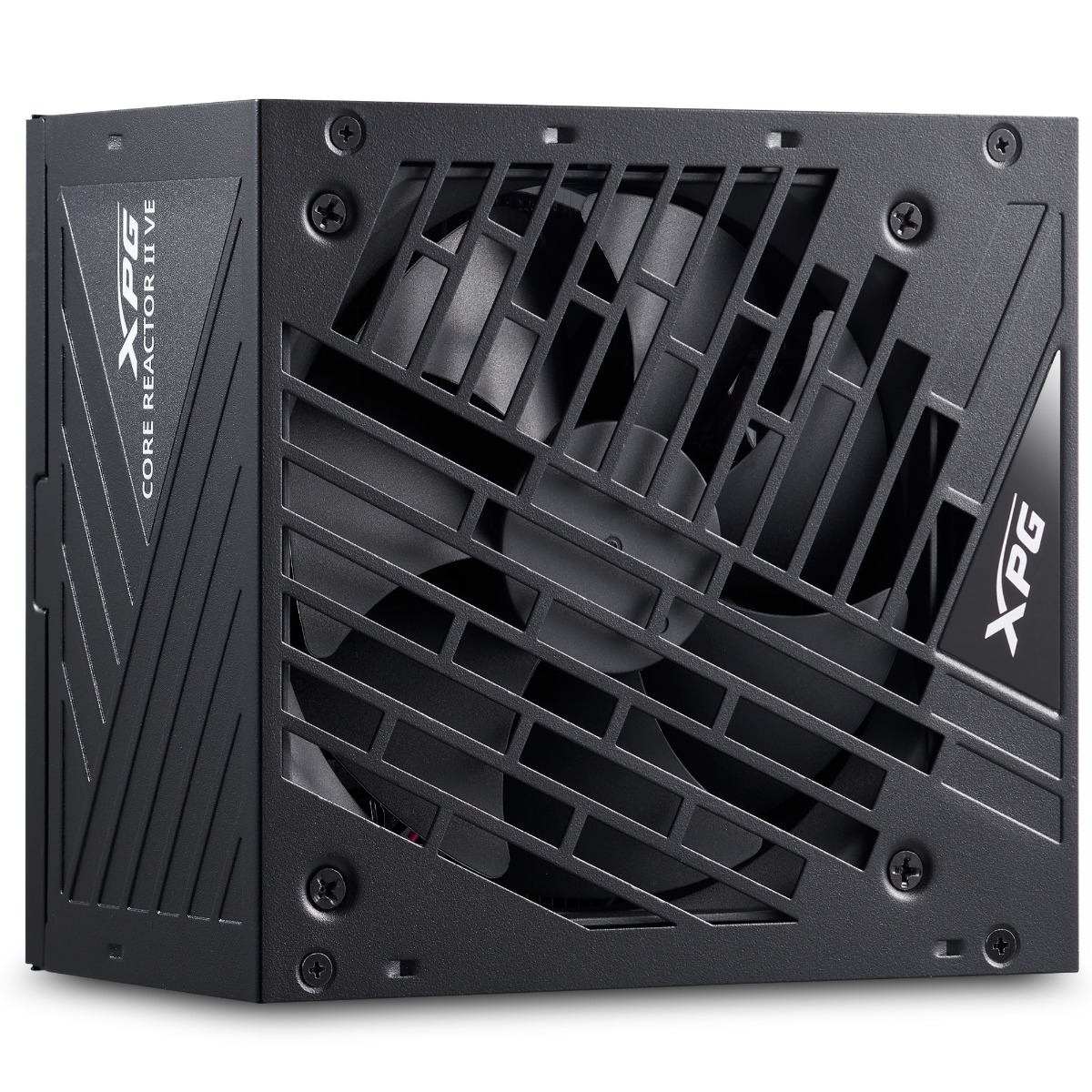

SPECIFICATIONS & DETAILS Model Name COREREACTORIIVE850G-BKCAU Specifications PRODUCT NAME XPG CORE REACTOR II VE DIMENSIONS (L X W X H) 140 x 150 x 86mm CYBENETICS RATING GOLD 80 PLUS RATING GOLD ATX VERSION Intel ATX 12V v3.1 PROTECTIONS OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP CERTIFICATION CB / CE / FCC / TUV / cTUVus / BSMI / CCC NOM / FCC IC / UKCA / TUV / TUV S-Mark / cTUVus PFC 0.99 INPUT VOLTAGE 100-240V INPUT CURRENT 850W: 12A 750W: 10A 650W: 10A INPUT FREQUENCY 47Hz-63Hz DC OUTPUT VOLTAGE +5V | +3.3V | +12V | -12V | +5Vsb TOTAL OUTPUT 850W: +5V/+3.3V :22A, +12V:70.8A, -12V:0.3A, +5Vsb:3A 750W: +5V/+3.3V :22A, +12V:62.5A, -12V:0.3A, +5Vsb:3A 650W: +5V/+3.3V :20A, +12V:54.1A, -12V:0.3A, +5Vsb:3A POWER EXCURSION 850W: 1997W (*up to 235% of the PSU's rated power for 100μs) 750W: 1762W (*up to 235% of the PSU's rated power for 100μs) 650W: 1527W(*up to 235% of the PSU's rated power for 100μs) OPERATING TEMPERATURE 40°C FAN SIZE 120mm FDB Fan FAN BEARING FDB (Fluid Dynamic Bearing) FAN SPEED 2400 RPM MTBF 100K hours at full load ATX 24 PIN CONNECTOR 1 EPS 8 PIN CONNECTOR 2 PCI-E 6+2 PIN CONNECTOR 850W / 750W: 3 650W: 2 MOLEX 4 PIN CONNECTOR 2 12V-2X6 (12+4) CONNECTOR (600W) 850W / 750W: 1 12V-2X6 (12+4) CONNECTOR (450W) 650W: 1 SATA CONNECTOR 6 WEIGHT 850W / 750W: Product + Cables: 1450g+1350g with Package: 3.03kg 650W: Product + Cables: 1450g+1320g with Package: 3kg WARRANTY 7 years
