Aten
Part no. CL3116NX-ATA-AU · Warranty 24 months
RRP $2,539.00 · You save $101.60
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.

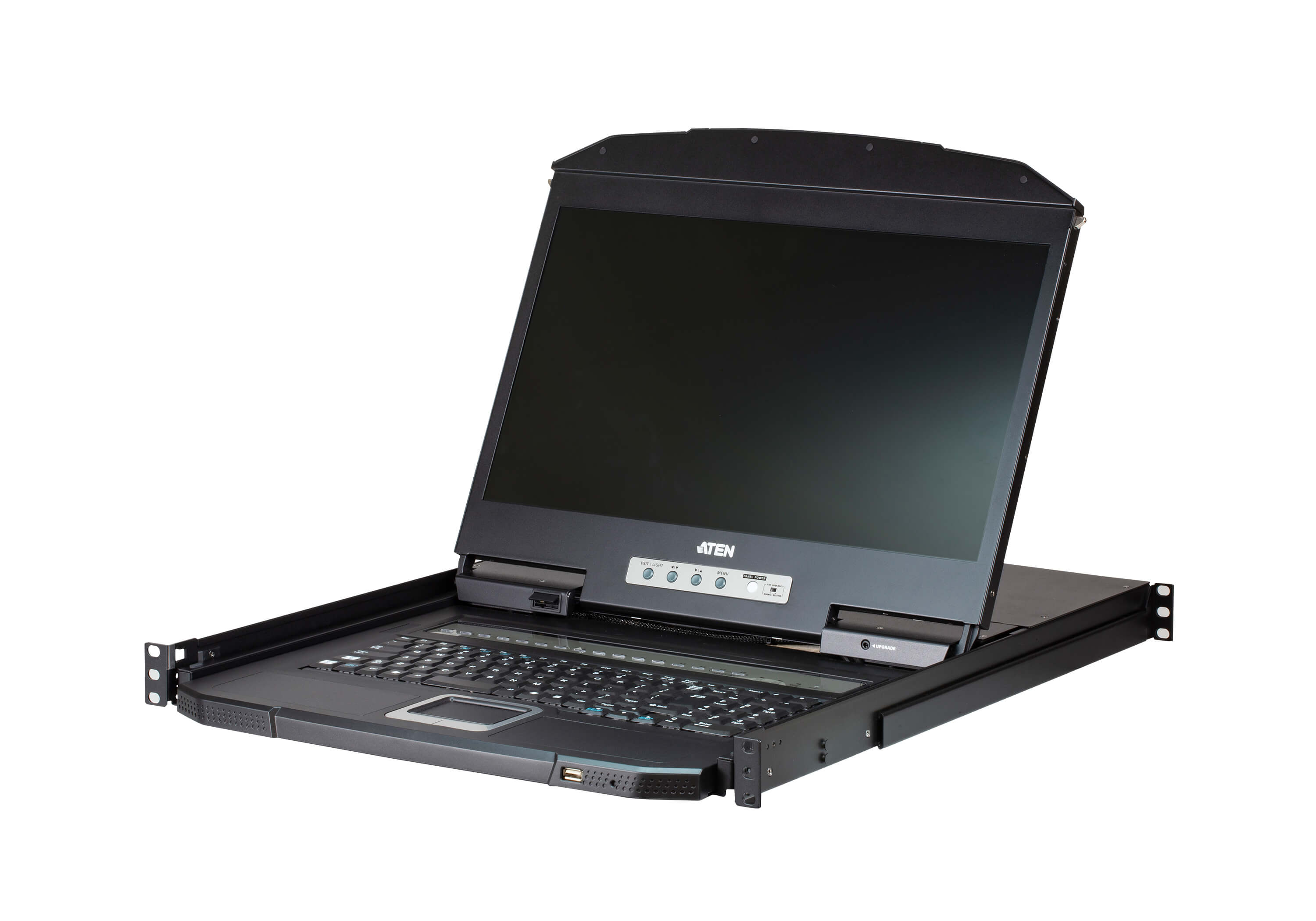

Aten 18.5' Short Depth 16 Port LCD KVM, can be mounted up to a depth of 42cm to 72cm and LCD panel with 1366 x 768 resolution, includes 2 1.8m VGA USB KVM Cable Exclusive LED illumination light designed to illuminate the keyboard and touchpad to allow visibility in low-light conditions Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack Cascade up to 2 levels – CL3116 controls up to 256 computers from a single console Keyboard and mouse emulation (PS/2 and USB) Specifications Function CL3116NX Computer Connections Direct 16 Connectors KVM Ports 16 x SPHD Female (Yellow) Switches Port Selection 16 x Pushbutton Video Input Video Resolution up to 1920 × 1200 @ 60 Hz; 1366 × 768 @ 60 Hz, DDC2B Scan Interval 1-255 seconds Emulation Keyboard / Mouse PS/2, USB Maximum Input Power Rating 100–240 V AC, 50-60 Hz, 1 A Power Consumption AC110V:14.1W:70BTU AC220V:14.9W:74BTU Environmental Operating Temperature 0-40°C Storage Temperature -20-60°C Humidity 0 - 80% RH, Non-condensing Physical Properties Housing Metal + Plastic Rail Type Single Rail Weight 10.60 kg ( 23.35 lb ) Dimensions (L x W x H) 48.06 x 63.17 x 4.28 cm Body Dimensions(L x W x H) 44.92 x 58.4 x 4.28 cm
