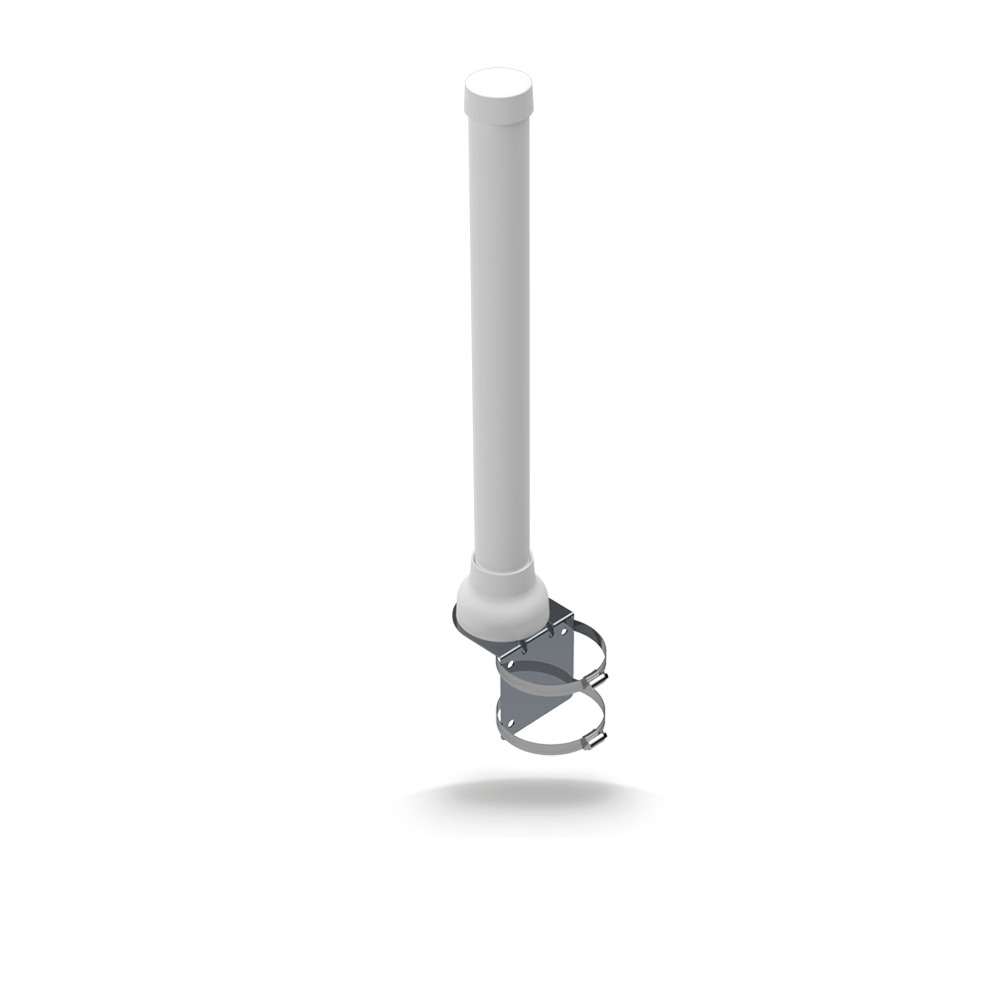

PANORAMA 2×2 MiMo 4G/5G MIMO OMNI TUBE ANTENNA 5m SMA(m), Wall, rail, or mast mount, Band71 Ready

Overview

PANORAMA 2×2 MiMo 4G/5G MIMO OMNI TUBE ANTENNA 5m SMA(m), Wall, rail, or mast mount, Band71 Ready The BS[G]M-6-60 antenna is a MiMo Omni-directional broadband antenna range for 4G/5G devices. It covers 617-960/1427-6000MHz and is suitable for external or internal installation. The mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast/rail mounting using the supplied clamps. The omni-directional radiation pattern allows easy placement of the antennas in an elevated position, without requiring directional alignment. The BSGM type is supplied with an integrated GPS/GNSS module with 26dB LNA gain and advanced filtering to combat noise. This antenna is an ideal solution for loT use in industrial and domestic environments for cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications. The weather and corrosion-resistant design also make the antenna suitable for certain marine and costal applications. Cradlepoint Approved for E100/E102 Series ELECTRICAL DATA Pattern Omnidirectional Max Input Power(W) 10 Frequency Range | Gain 617 – 960MHz | 3dBi; 1427 – 2700MHz | 6dBi; 3400 – 4200MHz | 5dBi; 4900 – 6000MHz | 5dBi Cellular LTE Elements 2 x 2 MIMO WIFI Elements No UHF Elements No GPS DATA GPS Frequency Range 1559-1612MHz LNA GAIN (dB) 26 Number of GPS Elements No; 1 Module MECHANICAL DATA Colour White Height 540 (mm) | 21.26 (in) Diameter 86 (mm) | 3.39 (in) Operating Temperature -40°/ +85°C (-40.0°/ +185.0°F) CABLE DATA Cable Length – LTE min: 0.5 (m) | 1.64 (ft); max: 5 (m) | 16.4 (ft) Cable length – GPS min: 0.5 (m) | 1.64 (ft); max: 5 (m) | 16.4 (ft) Cable Type (LTE) FR CS32 Cable Type (GPS) FR CS29 TERMINATION DATA Connector (GPS) FAKRA C; N (m); SMA (m); N (f) Connector (LTE) N (f); FAKRA D; N (m); SMA (m); FAKRA C MOUNTING DATA Mounting Type Fixed Mast; Panel; Wall Mounting Methods Mast; Panel; Wall APPROVALS DATA IP Rating IP67
