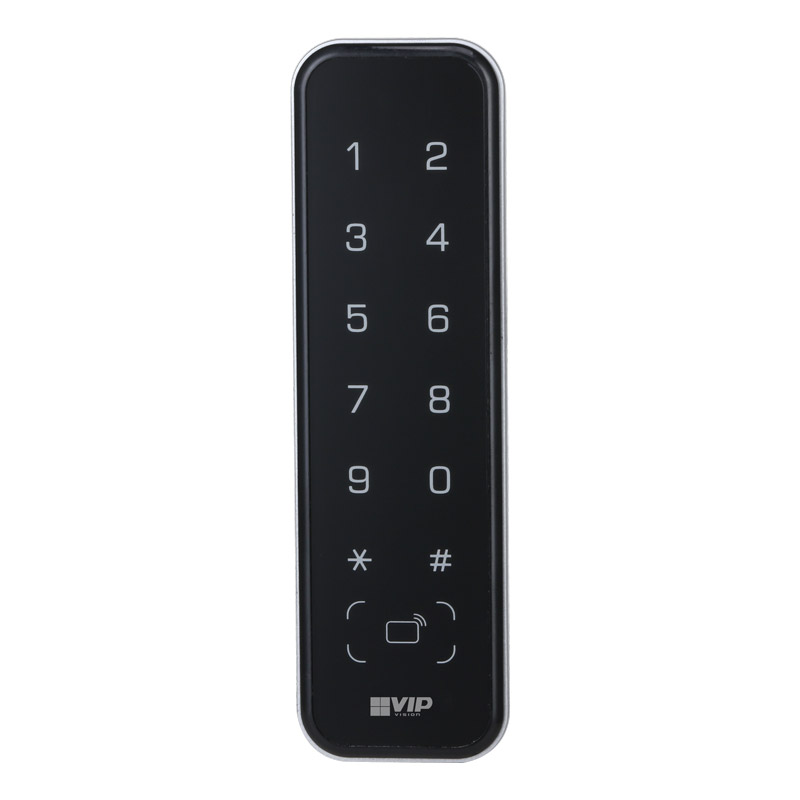

VIP Vision Access Control Card & Keypad Reader - Slimline
Part no. AC-WRB-CK · Warranty 48 months
$63.20inc GST
In stock
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.
Overview
The AC-WRB-CK reader in the AC-W Series is a surface mount, slimline card and keypad authentication reader, with premium design and quick surface mount installation. Users are prompted to access alerts via audio and LED indicator cues for a smooth access control experience, ideal for commercial applications. • Card and keypad reader authentication • Web management via controller and web browser • RS-485 or Wiegand protocol via 13.56MHz RFID • Reader can enroll new access cards or keyfobs • LED and chime for user audio/visual prompts • Anti-tamper alarm and backlit keypad • Polycarbonate and tempered glass construction • IP66 weather rated (fitted as per install guidelines)
- Audio: Buzzer
- Communication: RS-485 / Wiegand 34
- Dimensions: 135 x 40 x 15mm
- Fingerprint Scan: -
- Ingress Protection: IP66 (when fitted as per product installation guidelines)
- Keypad: 12 Touch Keys (0-9,*,#)
- Light: Blue Backlight
- Net Weight: 0.16kg
- Operating Conditions: -30°~+70° C / <95% RH
- Power Supply: 12VDC 0.5A, Consumption: ≤0.9W (Standby), ≤1.7W
- Product: Card/Keypad Reader
- RFID Format: 13.56MHz (Mifare)
