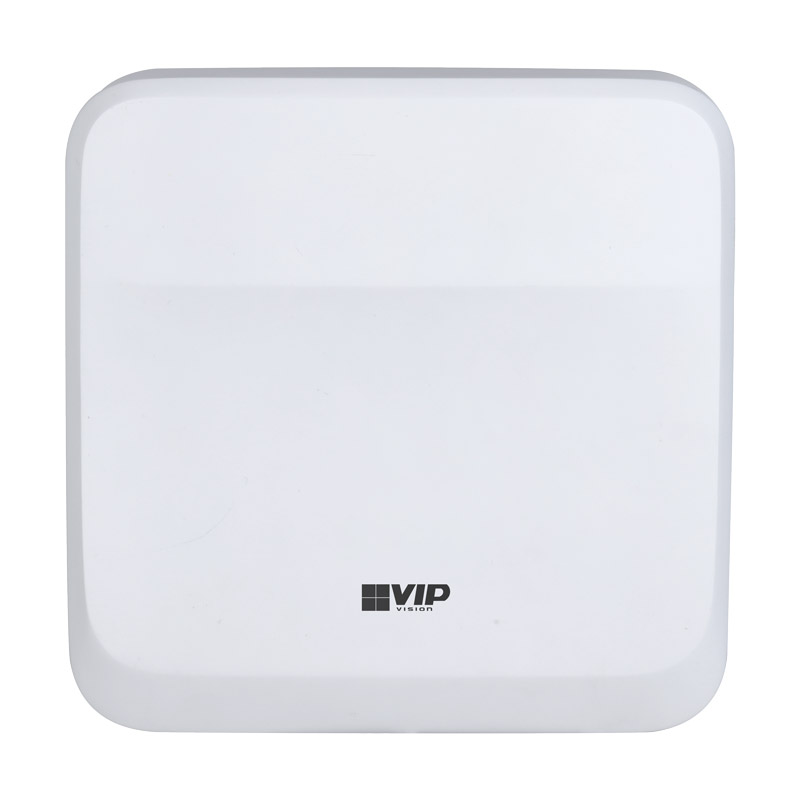

VIP Vision 2-Door Web Access Controller Module

Overview

The AC-W Series comprises powerful and flexible access control systems designed to deliver secure and scalable access management for commercial applications. The AC-WCM web control module acts as central command for your access control system, managed simply via your network within your web browser. Cascade web control modules to grow your system to manage up to 40 doors, perfect for securing small to medium enterprises. To scale further, combine multiple systems via Access Management Platform software, built for large enterprise deployments. • Built-in web server for master and sub configuration • Power via PoE and output 12VDC 1A to door locks • Access features incl. first-person unlock, global anti-passback and more • Combine up to 20 modules to control up to 40 doors • Web control module supports up to 1000 users • Manage users, roles, keys, codes via web browser • Accesses readers via Wiegand & RS-485 protocols

• Access Control: First-Person Unlock, Multi-Person Unlock, Multi-Door Interlock, Global Anti-Passback, Global External Alarm, Blocklist/Allowlist, Real-time Monitoring, Multi-Factor Authentication, Web Configuration, Network Software Updates, Multi-User Authentication (via Management Platform only)
• Alarm Function: Door Sensor Timeout, Tamper Alarm, Duress Alarm via Card or Fingerprint, Intrusion Alarm, Illegal Card
• Battery Backup: Supports battery backup (via AC-WSB)
• Battery Up-time: 6~12 hours (system dependent)
• Card Memory: 5,000 (as Main Controller), 50,000 (as Sub Controller)
• Dimensions: 186 x 186 x 58mm
• Ethernet: RJ-45 (10/100Base-T)
• Event Memory: Up to 300,000 Events
• Housing: Plastic (PC and ABS)
• Input Ports: 2 x Door Status, 2 x Lock Control, 2 x Exit Button, 2 x Alarm Input/Output, 1 x RJ-45, 2 x Wiegand, 3 x RS-485
• Main Processor: Embedded Processor
• Memory: Embedded
