NVIDIA

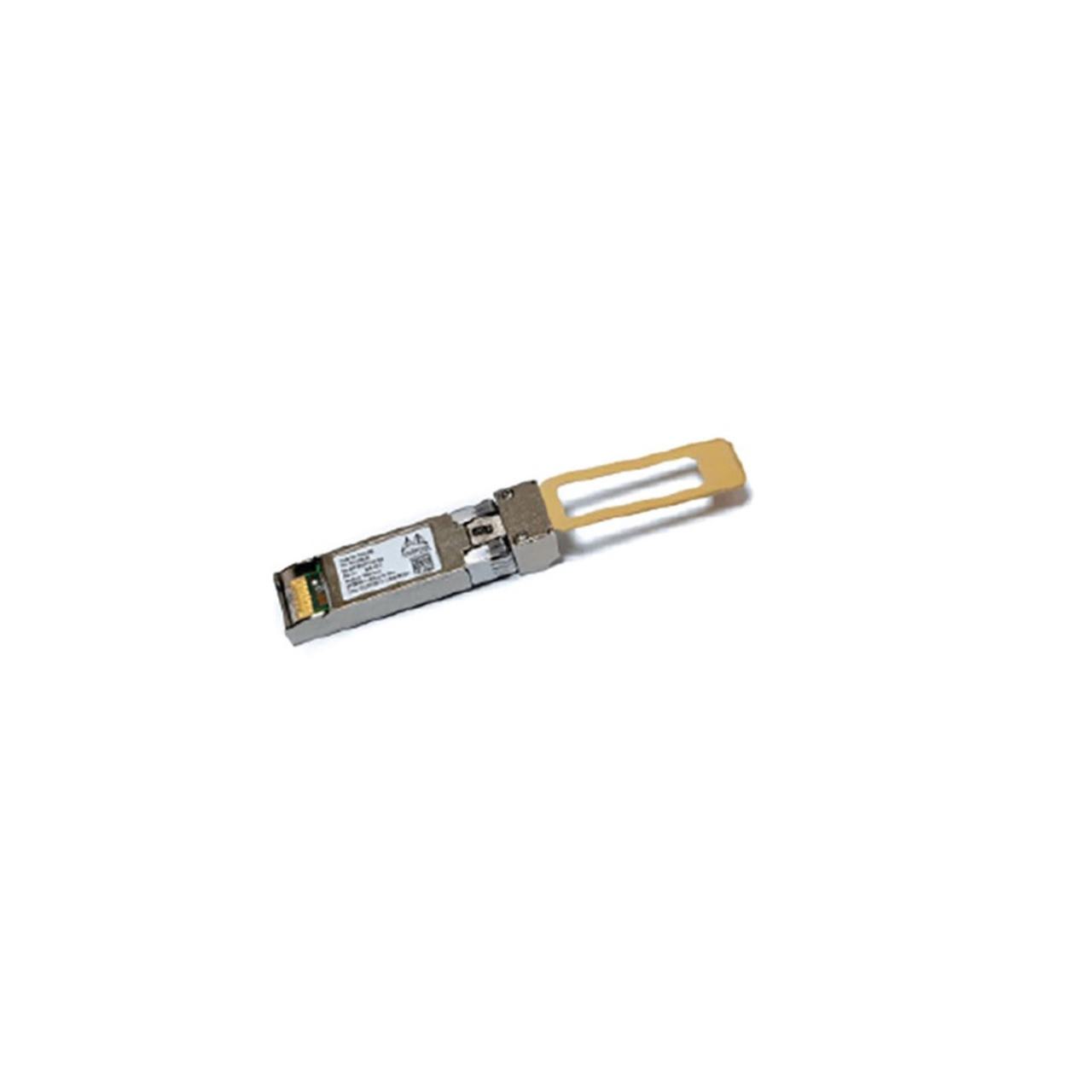

NVIDIA 25GbE SR SFP28 MMF Transceiver
Part no. 980-9I595-00AM00
$283.65inc GST
RRP $293.90 · You save $10.25
Available to order
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.
Overview
Mellanox MMA2P00-AS/MMA2P00-ASHT is a pluggable SFP28 optical transceiver designed for use in 25GbE Ethernet. It incorporates Mellanox integrated circuit technology in order to provide high performance at low power. The transceiver operates over a pair of multi-mode fibers (MMF), using a nominal wavelength of 850nm, and is SFF-8402 compliant.
- Selectable retiming for both Tx and Rx
- Programmable Rx output emphasis
- Programmable Tx input equalizer
- SFF-8402 compliant SFP28
- 3.3V power supply
- SFP28 power level 1
- 0.7W power dissipation (typ., with retiming)
- BER better than 1E-15
- 0°C-85°C extended operating case temperature range (MMA2P00-ASHT only)
- Class 1 laser safety
- Up to 100m on OM4 and 70m on OM3 multimode fiber at 25Gb/s
- Up to 100m on OM3 at 10Gb/s
