NVIDIA

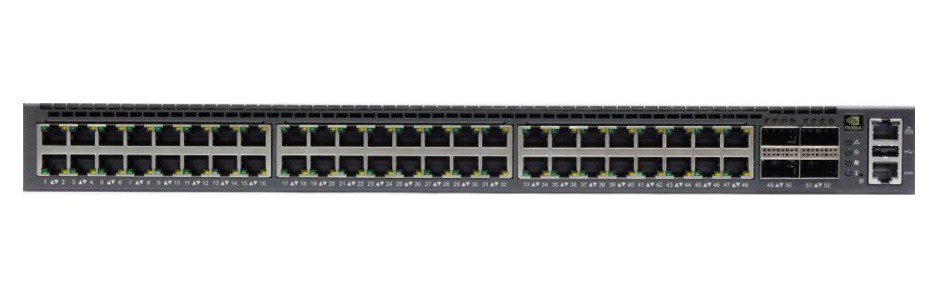

NVIDIA 52-Port Switch Linux C2P
Part no. 920-9N110-00R1-0C0
$6,003.95inc GST
RRP $6,999.00 · You save $995.05
Available to order
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.
Overview
The NVIDIA Spectrum SN2201 switch system sets a new bar for 1G switches. Flexibly adapting to modern data center requirements, the SN2201 has two key use cases: a top-of-rack switch, connecting up to 48 x 1G/100M/10M Base-T host-ports with non-blocking 100 GbE spine uplinks, or as an out-of band (OOB) management switch. Featuring highly advanced hardware and software, along with ASIC-level telemetry and a 16MB fully shared buffer, the SN2201 delivers unique and innovative features to 1G switching.
- RJ-45 Ports: 48
- RJ-45 Speeds: 1Gbps
- Combo Ports (RJ-45 + SFP): 48 RJ45 and 4 QSFP28 ports
- SFP (Small Form-Factor Pluggable) Ports : 4
- SFP Speeds: 100GbE
- PoE++ (60w) or higher available?: No
- Number of PoE Ports: 0
- Extended PoE?: No
- Capacity in Millions of Packets per Second (mpps): Maximum Forwarding Rate: 667Mpps
- Switching Capacity in Gigabits per Second (Gbps): Throughput: 448Gb/s
- Web-based GUI: Yes
- Redundant Power Supply: Yes
