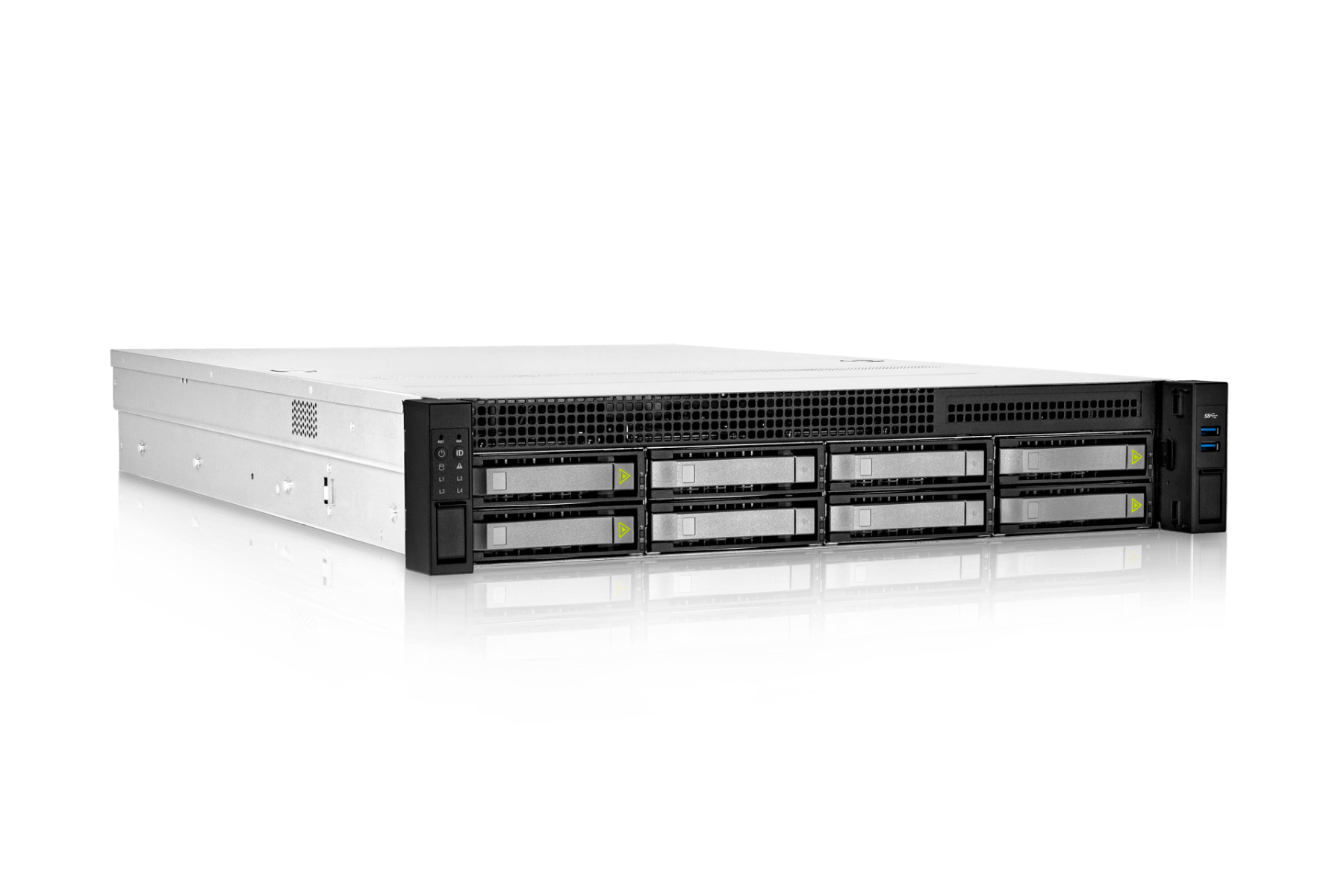

Inwin
Part no. 1BBVACAV000300
Freight is worked out from your postcode in your list. We confirm stock and delivery before anything is charged.
We need to check the weight and size of this item and confirm delivery options manually.
Specification Industry Standard Compatible with EIA-RS310D standard 19" cabinets M/B Form Factor ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") Drive Bay • External 2.5"/3.5" hot-swap trays x 8 (optional U.2 NVMe SSD trays x 4) • Internal 2.5" x 3 or x 4 (via slim ODD conversion tray) • Rear 2.5" screwless hot-swap HDD trays x 2 (supports SAS 12Gbps) Power Supply • Form factor: 80 Plus Gold • Watt: 500W Indicators Power LED, LAN1/LAN2/LAN3/LAN4 LED, system LED, ID LED Front Control Panel Power on/off, reset, NMI, ID SW, USB3.0 x 2 Backplane Type-1 • Host: Mini-SAS HD (SFF-8643) x 2, OCuLink (SFF-8611) x 4 • HDD: SAS/SATA x 8 or SAS/SATA x 4 and NVMe SSD x 4 Backplane Type-2 • Host: Mini-SAS HD (SFF-8643) x 2 • HDD: SAS/SATA x 8 Cooling Fans 80 x 38mm PWM hot-swap fans x 4, 12000RPM Expansion Slot Low-profile PCIe slots x 7 Material • Material: SGCC • Thickness: 1.2mm Rail Kit Supports 28" tool-less & ball-bearing slide rails Product Dimensions (DxWxH; Chassis Only) 660 x 448 x 87.5mm (26" x 17.6" x 3.4") Package Dimensions (DxWxH) 905 x 610 x 228mm Weight (Chassis Only) • Net weight: 13.26kg • Gross weight: 16.56kg Cubic Feet 4.44 Container Information Single packing with pallets: • 20': 160pcs • 40': 336pcs • 40'HQ: 378pcs Backplane Specifications Backplane Type-1 SAS3 & PCIe Gen4 hybrid backplane Data Transfer Rate SAS3 12Gb/s PCle Gen4 16GT/s Dimension (W x H) 404.5mm x 52mm Backplane Type Passive Host Interface Mini-SAS HD (SFF-8643) x 2, OCuLink (SFF-8611) x 4 HDD Interface SAS/SATA x 8 or SAS/SATA x 4 and NVMe SSD x 4 Backplane Type-2 SAS3 backplane Data Transfer Rate SAS3 12Gb/s Dimension (W x H) 404.5mm x 52mm Backplane Type Passive Host Interface Mini-SAS HD (SFF-8643) x 2 HDD Interface SAS/SATA x 8
